QUESTION 3 3.1 Draw the shear-force and bending-moment diagrams for a cantilever beam AB carrying a uniform load of inte

[answerhappygod]

Question 3 3 1 Draw The Shear Force And Bending Moment Diagrams For A Cantilever Beam Ab Carrying A Uniform Load Of Inte 1 (32.39 KiB) Viewed 16 times

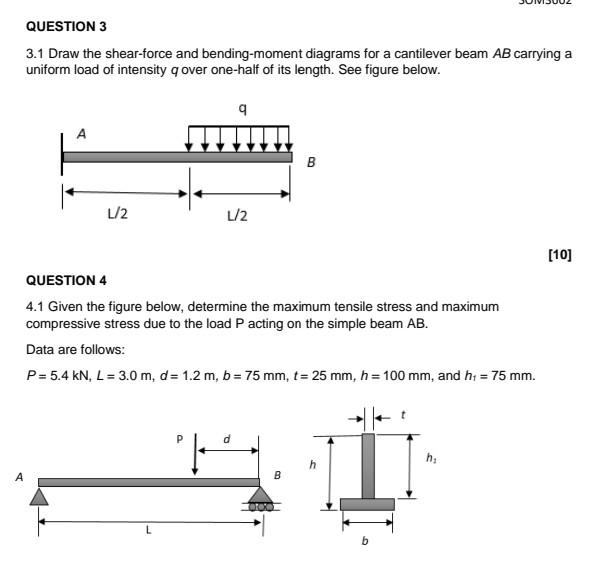

QUESTION 3 3.1 Draw the shear-force and bending-moment diagrams for a cantilever beam AB carrying a uniform load of intensity q over one-half of its length. See figure below. q B L/2 L/2 [10] QUESTION 4 4.1 Given the figure below, determine the maximum tensile stress and maximum compressive stress due to the load P acting on the simple beam AB. Data are follows: P= 5.4 kN, L = 3.0 m, d = 1.2 m, b = 75 mm, t= 25 mm, h = 100 mm, and h = 75 mm. P d | h h; B L
