QUESTION 1 1.1 Determine the shear force V and bending moment M at the midpoint of the beam with overhangs. See figure b

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

QUESTION 1 1.1 Determine the shear force V and bending moment M at the midpoint of the beam with overhangs. See figure b

Post by answerhappygod »

Question 1 1 1 Determine The Shear Force V And Bending Moment M At The Midpoint Of The Beam With Overhangs See Figure B 1
Question 1 1 1 Determine The Shear Force V And Bending Moment M At The Midpoint Of The Beam With Overhangs See Figure B 1 (29.85 KiB) Viewed 21 times

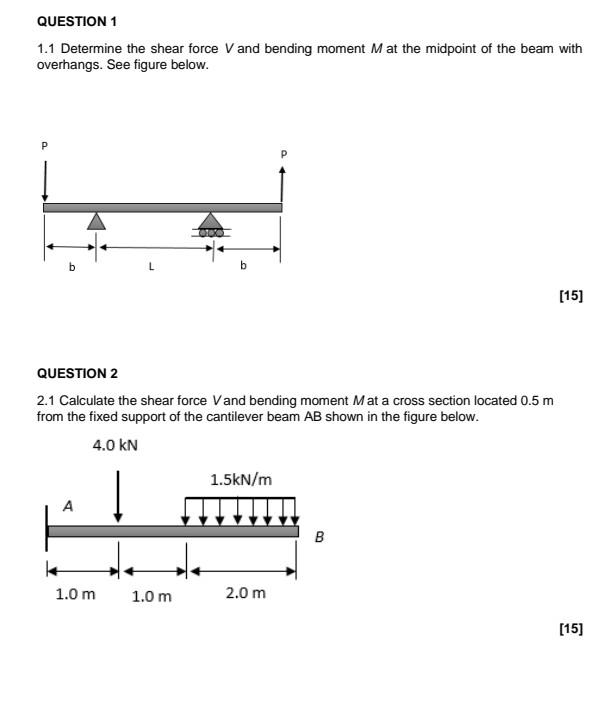

QUESTION 1 1.1 Determine the shear force V and bending moment M at the midpoint of the beam with overhangs. See figure below. р b [15] QUESTION 2 2.1 Calculate the shear force Vand bending moment Mat a cross section located 0.5 m from the fixed support of the cantilever beam AB shown in the figure below. 4.0 KN 1.5kN/m A A B B 1.0 m 1.0 m 2.0 m [15]
