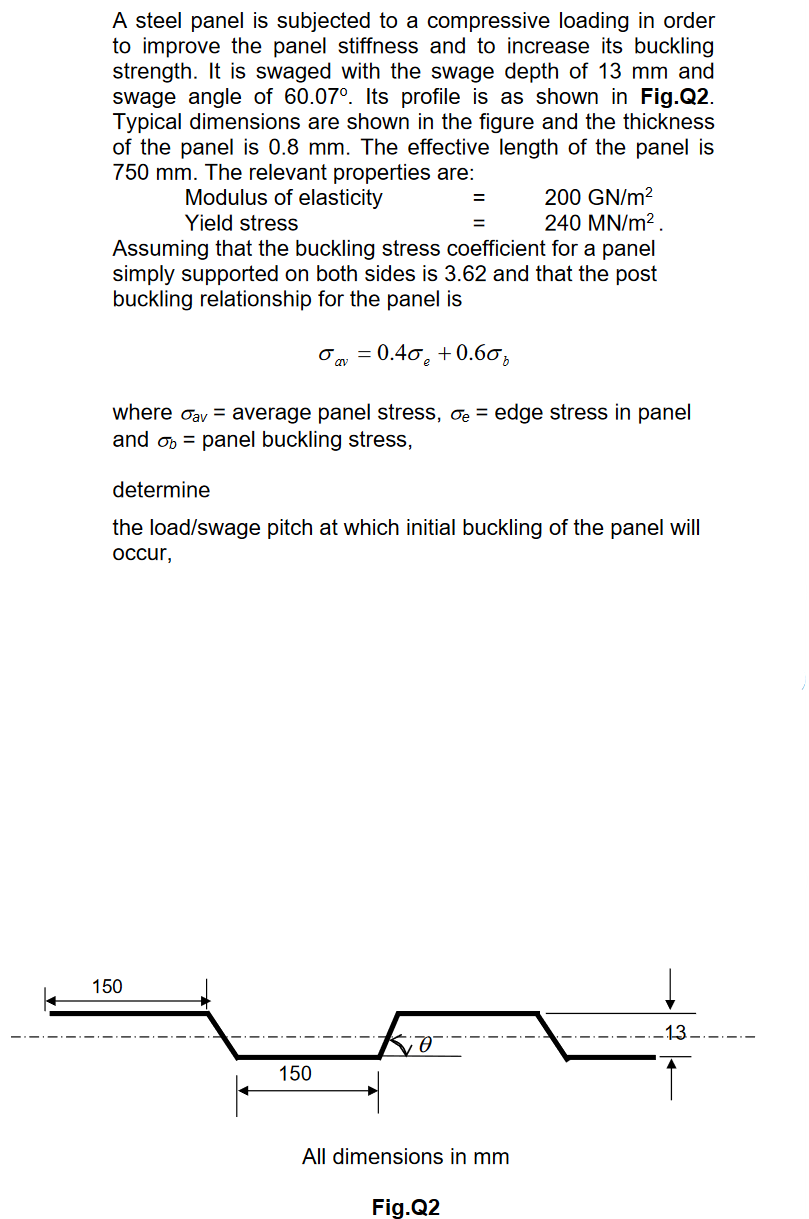

A steel panel is subjected to a compressive loading in order to improve the panel stiffness and to increase its buckling strength. It is swaged with the swage depth of 13 mm and swage angle of 60.07º. Its profile is as shown in Fig.Q2. Typical dimensions are shown in the figure and the thickness of the panel is 0.8 mm. The effective length of the panel is 750 mm. The relevant properties are: Modulus of elasticity 200 GN/m2 Yield stress 240 MN/m2 Assuming that the buckling stress coefficient for a panel simply supported on both sides is 3.62 and that the post buckling relationship for the panel is = Om = 0.40, +0.600 = where av = average panel stress, de = edge stress in panel and on = panel buckling stress, determine the load/swage pitch at which initial buckling of the panel will occur, 150 13 Кө 150 All dimensions in mm Fig. Q2
A steel panel is subjected to a compressive loading in order to improve the panel stiffness and to increase its buckling strength. It is swaged with the swage depth of 13 mm and swage angle of 60.07º. Its profile is as shown in Fig.Q2. Typical dimensions are shown in the figure and the thickness of the panel is 0.8 mm. The effective length of the panel is 750 mm. The relevant properties are: Modulus of elasticity 200 GN/m2 Yield stress 240 MN/m2. Assuming that the buckling stress coefficient for a panel simply supported on both sides is 3.62 and that the post buckling relationship for the panel is on = 0.40, +0.600 where Oav = average panel stress, De = edge stress in panel and ob = panel buckling stress, determine (a) the load/swage pitch at which initial buckling of the panel will occur, (b) the instability load per swage pitch. (c) Discuss the effects upon the compressive strength of the panel of: i) Varying the swage width; ii) Varying the swage depth 150 13 fo 150 All dimensions in mm Fig.Q2
