You are asked to design a four bar mechanism to empty the dust pan into the trash bin. The figure below shows the three

Post by answerhappygod »

You Are Asked To Design A Four Bar Mechanism To Empty The Dust Pan Into The Trash Bin The Figure Below Shows The Three 1
You Are Asked To Design A Four Bar Mechanism To Empty The Dust Pan Into The Trash Bin The Figure Below Shows The Three 1 (212.08 KiB) Viewed 14 times

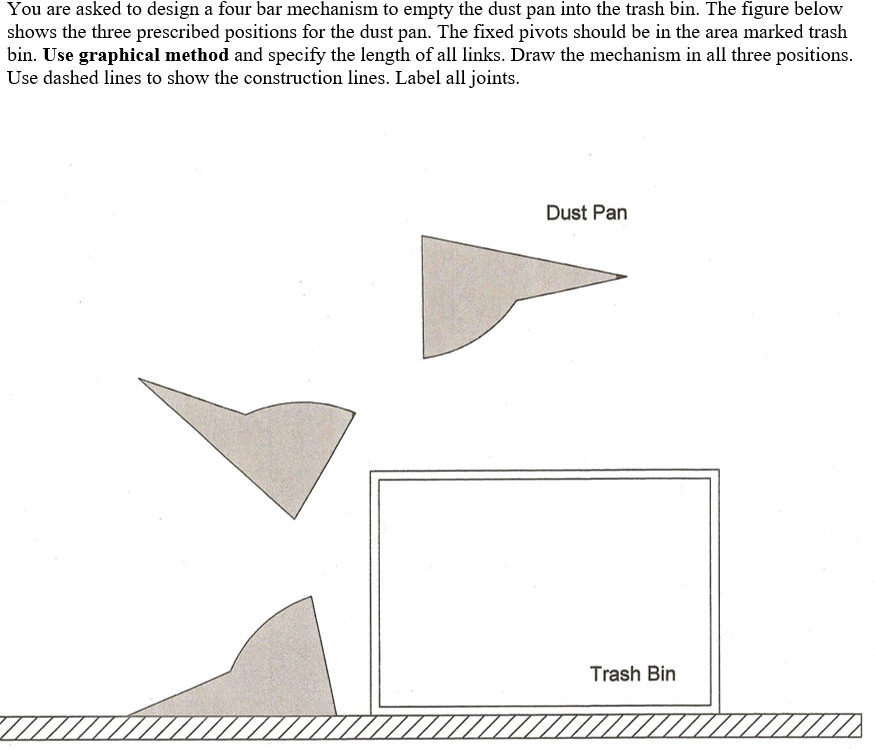

You are asked to design a four bar mechanism to empty the dust pan into the trash bin. The figure below shows the three prescribed positions for the dust pan. The fixed pivots should be in the area marked trash bin. Use graphical method and specify the length of all links. Draw the mechanism in all three positions. Use dashed lines to show the construction lines. Label all joints. Dust Pan Trash Bin
