b) If the beam in part a) has the cross-sectional profile as shown below and a Young's Modulus, E, of 70GN/m², calculate
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
b) If the beam in part a) has the cross-sectional profile as shown below and a Young's Modulus, E, of 70GN/m², calculate

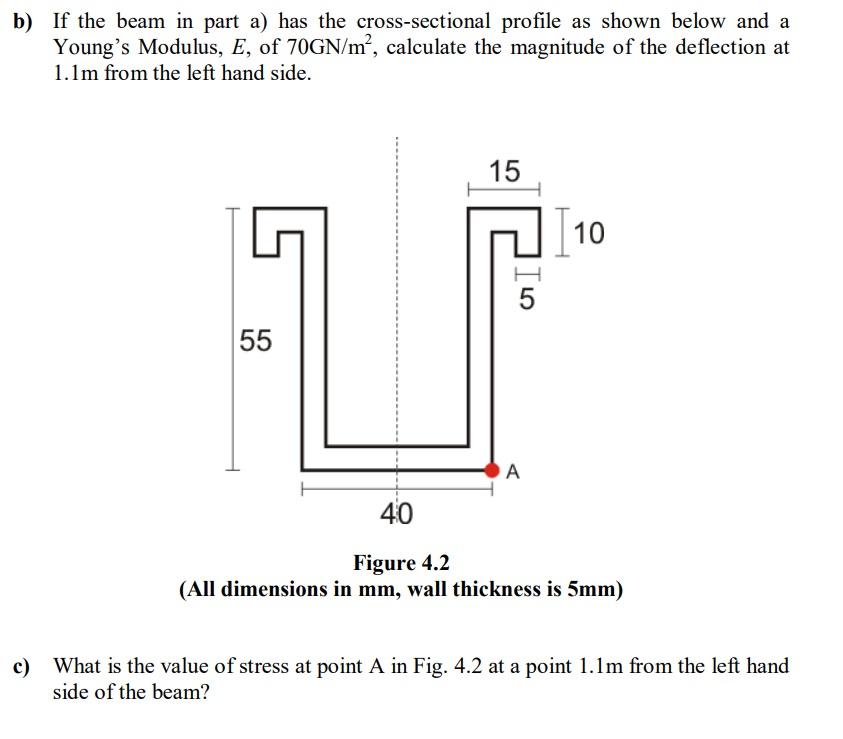

b) If the beam in part a) has the cross-sectional profile as shown below and a Young's Modulus, E, of 70GN/m², calculate the magnitude of the deflection at 1.1m from the left hand side. 15 10 GI 5 55 A 40 Figure 4.2 (All dimensions in mm, wall thickness is 5mm) c) What is the value of stress at point A in Fig. 4.2 at a point 1.1m from the left hand side of the beam?
