A sedimentation package has been purchased to remove solid particles from the waste stream of a chemical plant. The dens

[answerhappygod]

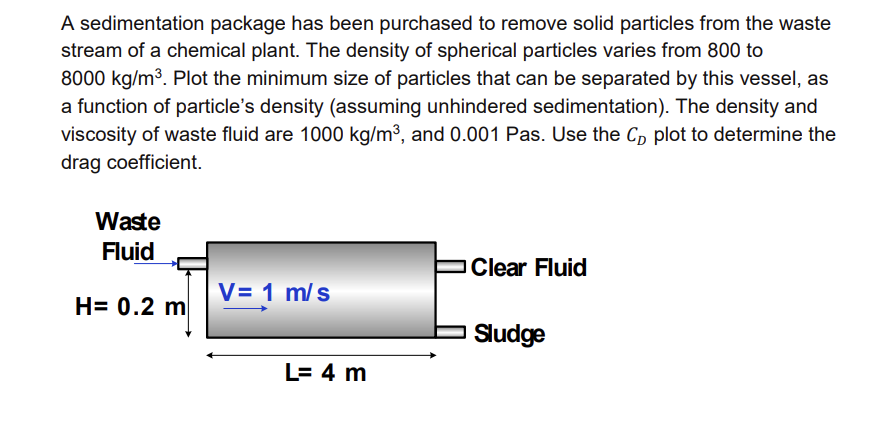

A Sedimentation Package Has Been Purchased To Remove Solid Particles From The Waste Stream Of A Chemical Plant The Dens 1 (75.72 KiB) Viewed 13 times

A sedimentation package has been purchased to remove solid particles from the waste stream of a chemical plant. The density of spherical particles varies from 800 to 8000 kg/m3. Plot the minimum size of particles that can be separated by this vessel, as a function of particle's density (assuming unhindered sedimentation). The density and viscosity of waste fluid are 1000 kg/m3, and 0.001 Pas. Use the Cp plot to determine the drag coefficient Waste Fluid Clear Fluid V= 1 m/s H= 0.2 m = Sludge L= 4 m
