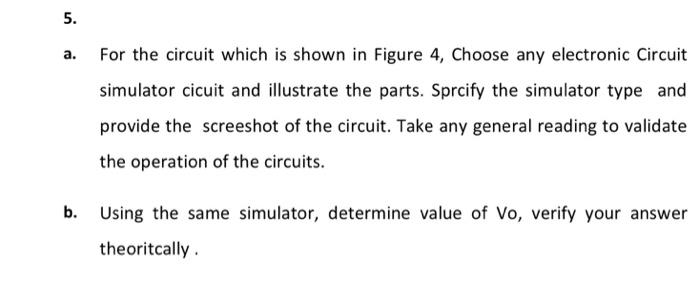

5. a. For the circuit which is shown in Figure 4, Choose any electronic Circuit simulator cicuit and illustrate the parts. Sprcify the simulator type and provide the screeshot of the circuit. Take any general reading to validate the operation of the circuits. b. Using the same simulator, determine value of Vo, verify your answer theoritcally

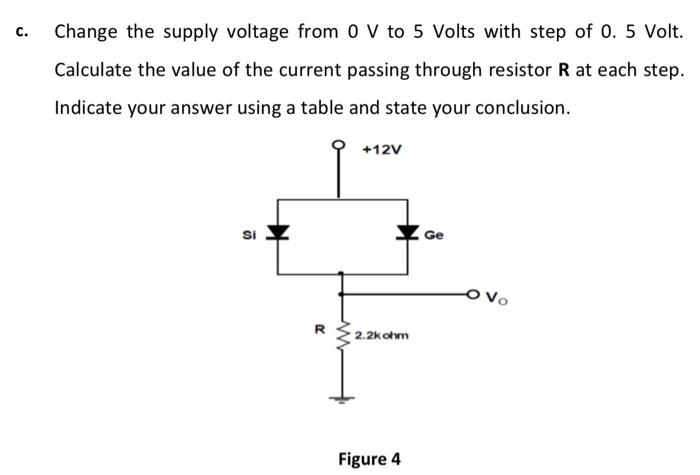

c. Change the supply voltage from 0 V to 5 Volts with step of 0. 5 Volt. Calculate the value of the current passing through resistor R at each step. Indicate your answer using a table and state your conclusion. +12V Si R 2.2k ohm Figure 4
