Ii Provide The Resolution Of The Adc As Implemented In The Figure Iii Assuming That The Reference Voltage Vref Is 5 1 (31.6 KiB) Viewed 17 times
Ii Provide The Resolution Of The Adc As Implemented In The Figure Iii Assuming That The Reference Voltage Vref Is 5 2 (55 KiB) Viewed 17 times

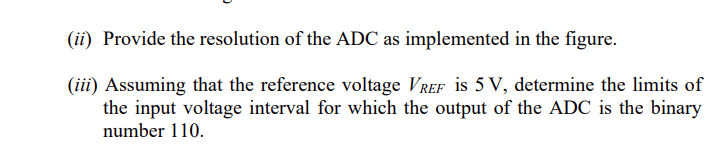

(ii) Provide the resolution of the ADC as implemented in the figure. (iii) Assuming that the reference voltage Vref is 5 V, determine the limits of the input voltage interval for which the output of the ADC is the binary number 110.

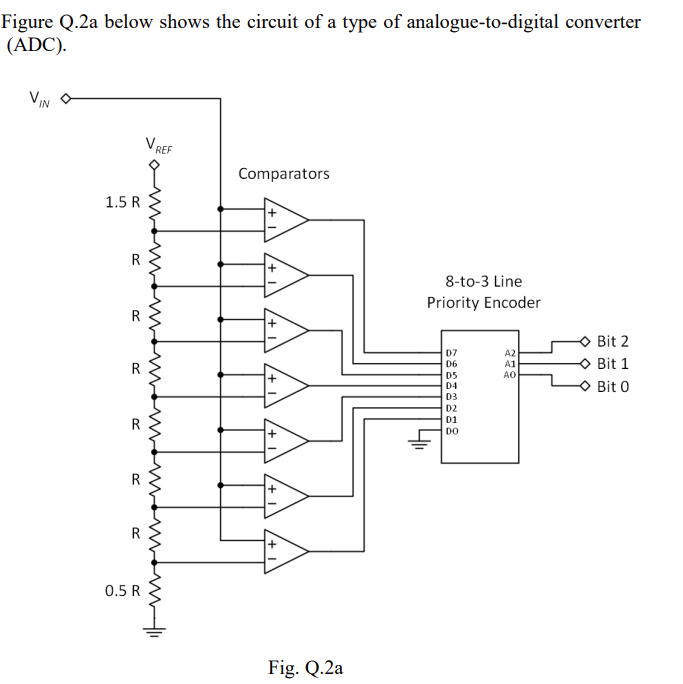

Figure Q.2a below shows the circuit of a type of analogue-to-digital converter (ADC). VIN V REF Comparators 1.5 R R 8-to-3 Line Priority Encoder R + R A2 A1 АО D7 D6 D5 D4 D3 D2 D1 DO Bit 2 Bit 1 Bit o 40 + + 0.5 R Ì Fig. Q.2a
