An electrical load, Z = 5+j22, is connected to the secondary winding of a transformer of turn ratio: Np/Ns 2:1. The tran

[answerhappygod]

An Electrical Load Z 5 J22 Is Connected To The Secondary Winding Of A Transformer Of Turn Ratio Np Ns 2 1 The Tran 1 (23.91 KiB) Viewed 23 times

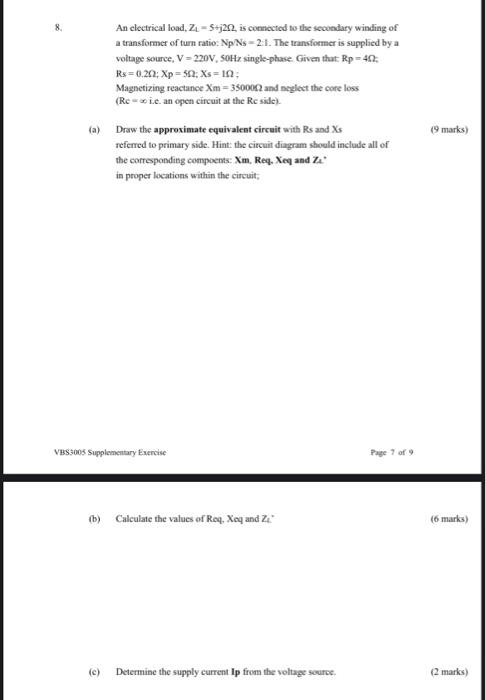

An electrical load, Z = 5+j22, is connected to the secondary winding of a transformer of turn ratio: Np/Ns 2:1. The transformer is supplied by a voltage source, V = 220V, 50Hz single-phase. Given that: Rp = 40 Rs=0.20; Xp=50; Xs = 10; Magnetizing reactance Xm=350000 and neglect the core loss (Re-ie an open circuit at the Rc side) (9 marks) (a) Draw the approximate equivalent circuit with Rs and Xs referred to primary side. Hint: the circuit diagram should include all of the corresponding comprents: Xm. Req. Xey and Z in proper locations within the circuit, VBS3005 Supplementary Exercise Page 7 of 9 (b) Calculate the values of Roq, Xeq and 2 (6 marks) (c) Determine the supply current lp from the voltage source (2 marks)
