An ideal transformer is supplied by a single-phase 220V 50Hz power source. Given that the voltage ratio, (Vp/Vs) = 10, a

Post by answerhappygod »

An Ideal Transformer Is Supplied By A Single Phase 220v 50hz Power Source Given That The Voltage Ratio Vp Vs 10 A 1
An Ideal Transformer Is Supplied By A Single Phase 220v 50hz Power Source Given That The Voltage Ratio Vp Vs 10 A 1 (18.05 KiB) Viewed 14 times

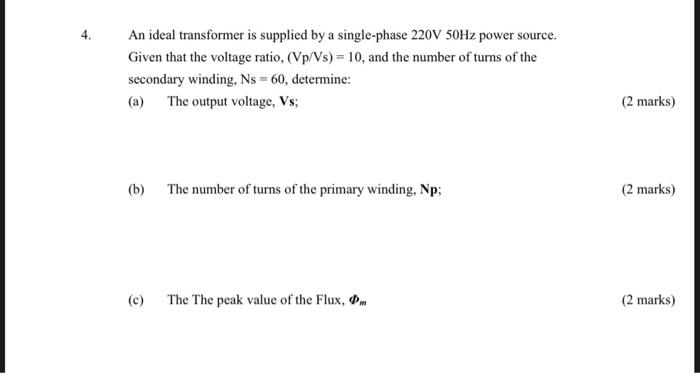

An ideal transformer is supplied by a single-phase 220V 50Hz power source. Given that the voltage ratio, (Vp/Vs) = 10, and the number of turns of the secondary winding, Ns = 60, determine: (a) The output voltage, Vs; (2 marks) (b) The number of turns of the primary winding, Np; (2 marks) (c) The The peak value of the Flux, . (2 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
