1. A parallel LRC circuit with Xc=3002, X = 3292 and R=1592 is connected to an input power supply of 240V a.c. as shown
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. A parallel LRC circuit with Xc=3002, X = 3292 and R=1592 is connected to an input power supply of 240V a.c. as shown

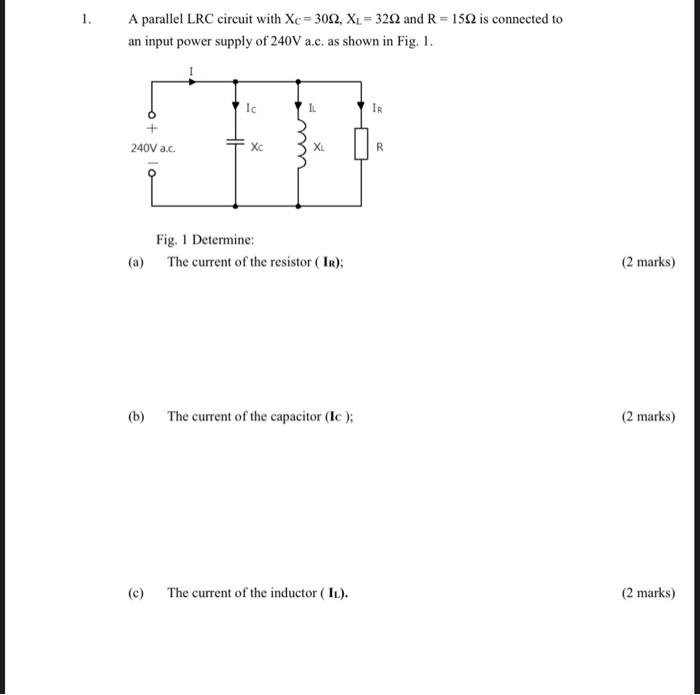

1. A parallel LRC circuit with Xc=3002, X = 3292 and R=1592 is connected to an input power supply of 240V a.c. as shown in Fig. 1. Ic 240V a.c. XL R Fig. 1 Determine: (a) The current of the resistor (IR); (2 marks) (b) The current of the capacitor (Ic); (2 marks) (c) The current of the inductor ( 11). (2 marks)
