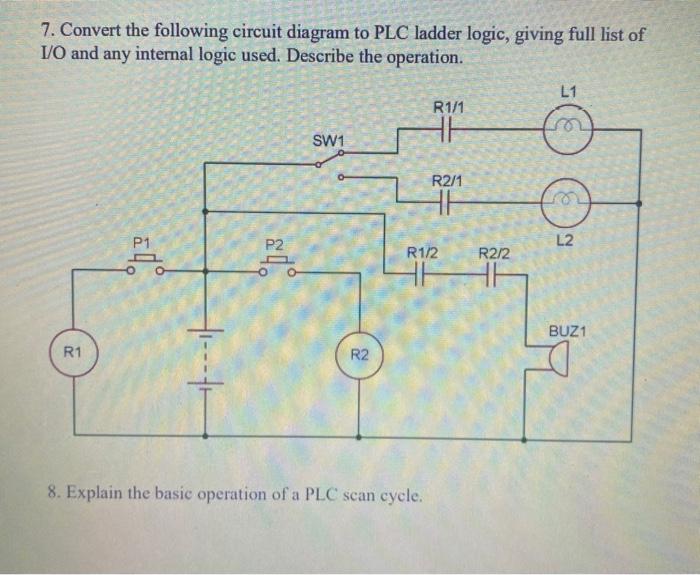

7. Convert the following circuit diagram to PLC ladder logic, giving full list of I/O and any internal logic used. Describe the operation. L1 R1/1 SW1 R2/1 HH P1 P2 L2 R1/2 R2/2 H BUZ1 ---IH R1 R2 8. Explain the basic operation of a PLC scan cycle.
