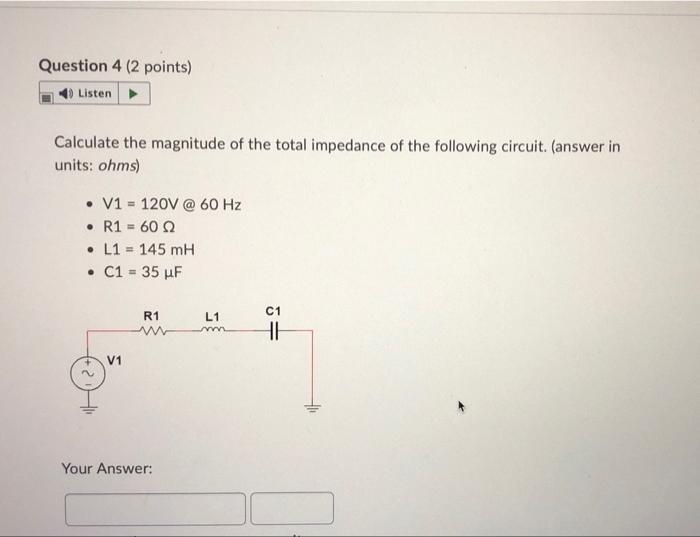

Question 4 (2 points) Listen → Calculate the magnitude of the total impedance of the following circuit. (answer in units: ohms) • V1 = 120V @ 60 Hz • R1 = 602 • L1 - 145 mH • C1 = 35 F C1 L1 R1 w 10 V1 H Your Answer:

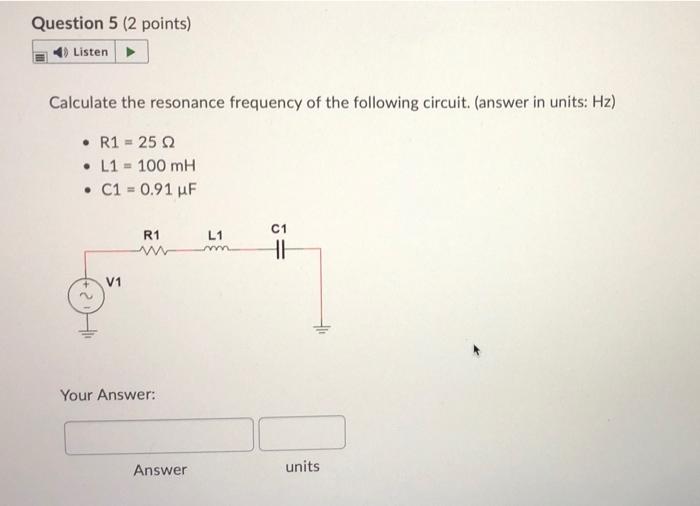

Question 5 (2 points) Listen Calculate the resonance frequency of the following circuit (answer in units: Hz) • R1 = 252 • L1 = 100 mH • C1 = 0.91 uF C1 R1 L1 TH V1 TH Your Answer: Answer units
