Q1/ Using the characteristics of Figure below, determine ID, VD, VR for the following circuit: + VD Si Тр + + E 12 V R>0

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q1/ Using the characteristics of Figure below, determine ID, VD, VR for the following circuit: + VD Si Тр + + E 12 V R>0

Post by answerhappygod »

1
1 (72.27 KiB) Viewed 29 times

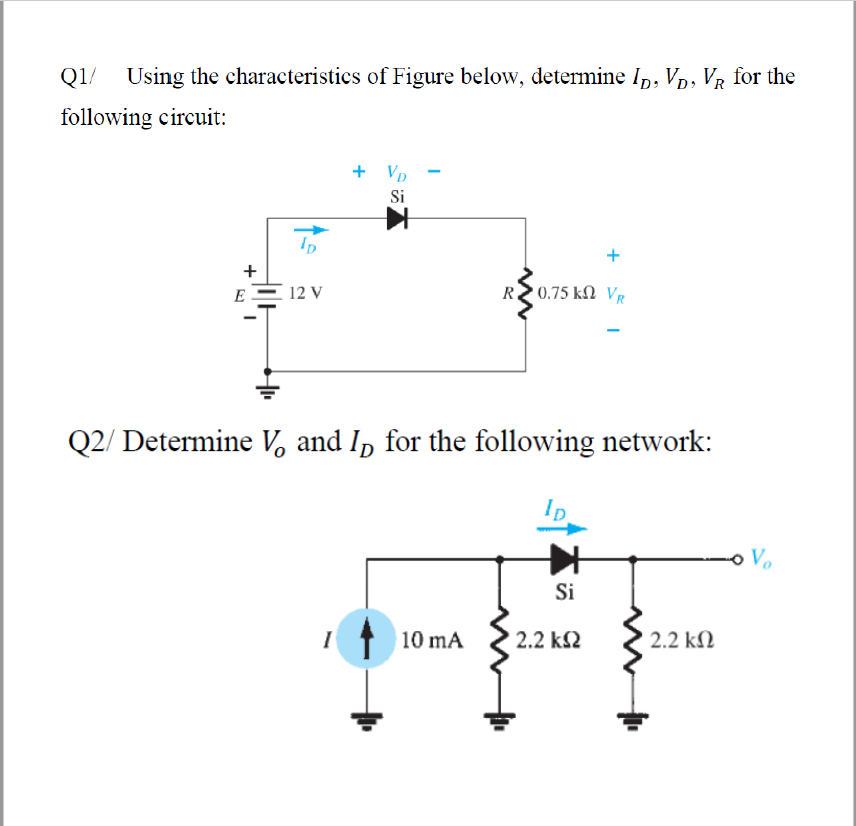

Q1/ Using the characteristics of Figure below, determine ID, VD, VR for the following circuit: + VD Si Тр + + E 12 V R>0.75 kA VR Q2/ Determine V, and ly for the following network: Ір. 计 Si 1 10 mA 2.2 ks2 2.2 k12
