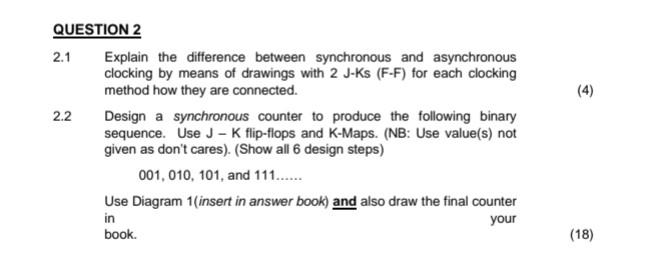

2.1 (4) 4 2.2 QUESTION 2 Explain the difference between synchronous and asynchronous clocking by means of drawings with 2 J-KS (F-F) for each clocking method how they are connected. Design a synchronous counter to produce the following binary sequence. Use J - K flip-flops and K-Maps. (NB: Use value(s) not given as don't cares). (Show all 6 design steps) 001,010, 101, and 111...... Use Diagram 1(insert in answer book) and also draw the final counter in your book. (18)

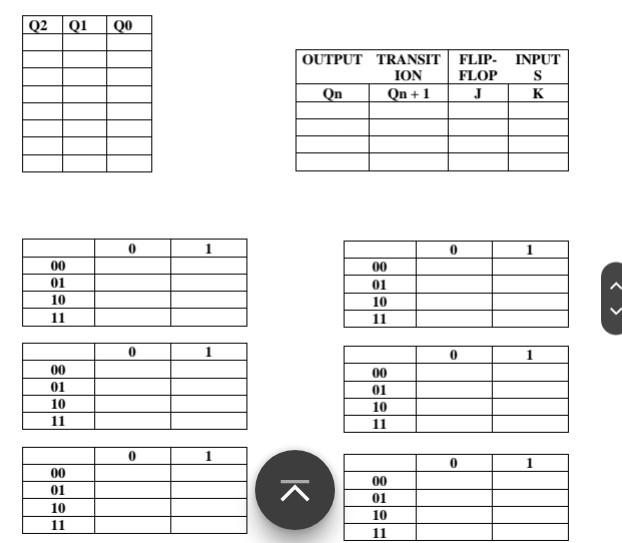

Q2 Q1 18 OUTPUT TRANSIT ION On On + 1 FLIP- FLOP J INPUT S K 0 00 01 10 11 00 01 10 11 0 0 00 01 10 11 00 01 10 11 0 0 1 K 00 01 10 11 00 01 10 11
