a to b ,thank you

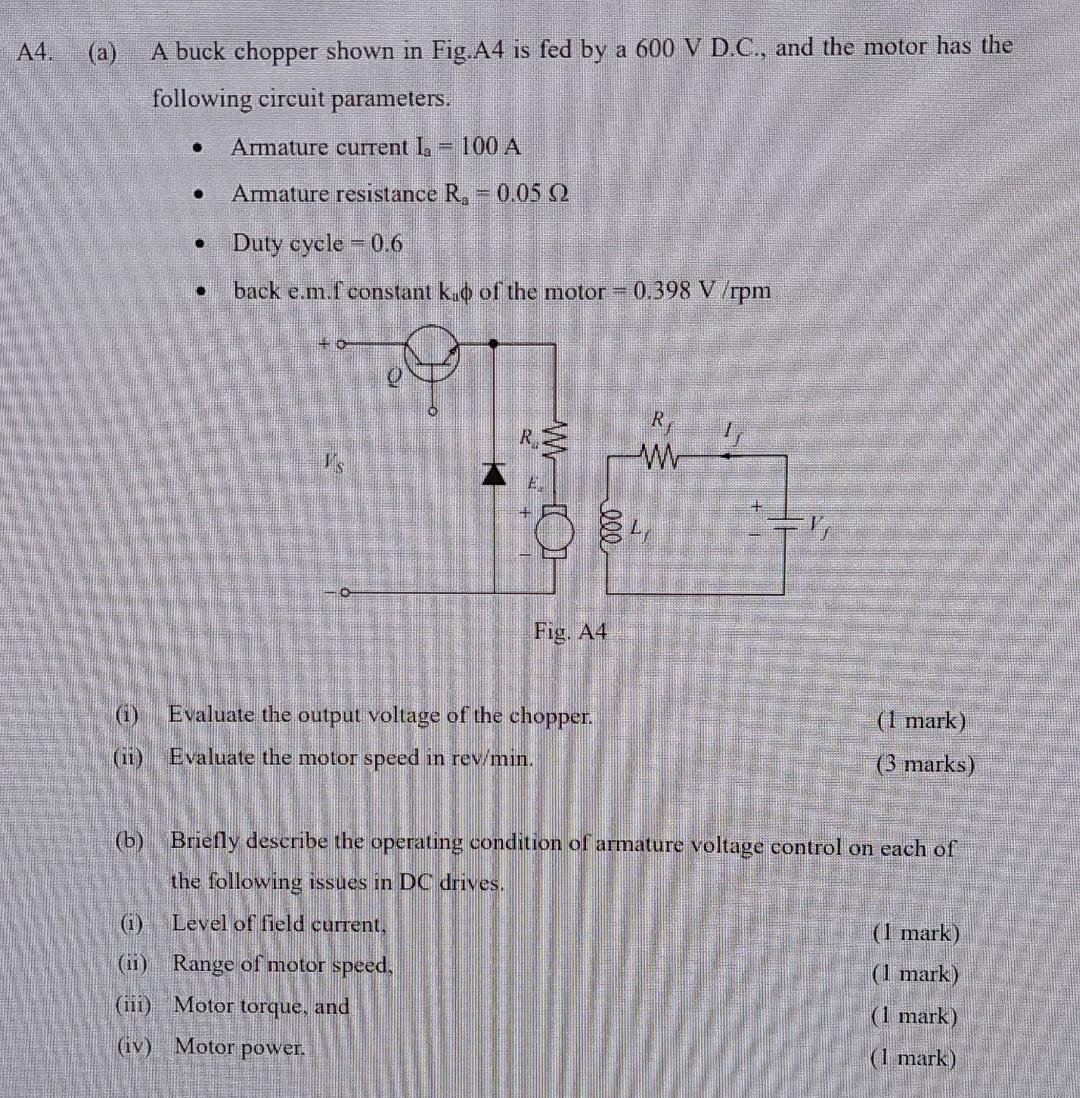

A4. A buck chopper shown in Fig. A4 is fed by a 600 V D.C., and the motor has the following circuit parameters. Armature current la = 100 A . Armature resistance R, = 0.05 Q2 • Duty cycle = 0.6 0 back e.m.f constant kuo of the motor = 0.398 V /rpm R IS M 84 O Fig. A4 (1 mark) 8 @ (1) Evaluate the output voltage of the chopper. (11) Evaluate the motor speed in rev/min. (3 marks) b (b) Briefly describe the operating condition of armature voltage control on each of the following issues in DC drives. (1) Level of field current, (1 mark) (ii) Range of motor speed, (1 mark) (iii) Motor torque, and (1 mark) (iv) Motor power. (1 mark)
