he power supply is to provide an output of +5V and part of the
circuit is shown in Fig. QA2. Complete the circuit with a full wave
bridge rectifier. The components available to you are listed in
Table QA2 below

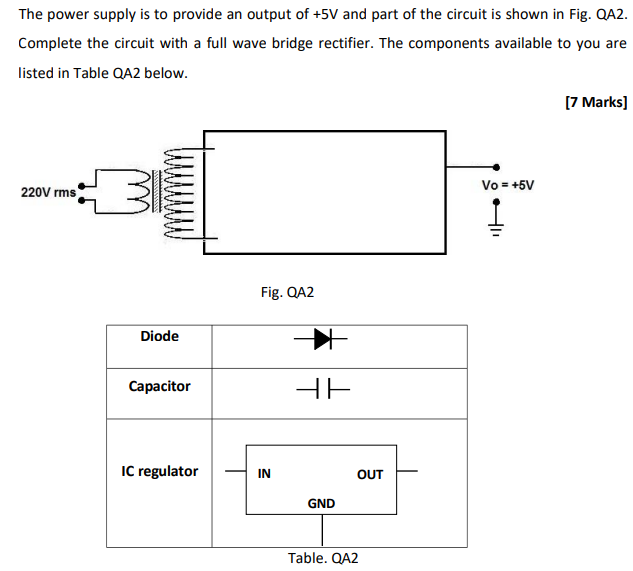

He Power Supply Is To Provide An Output Of 5v And Part Of The Circuit Is Shown In Fig Qa2 Complete The Circuit With A 1 (54.25 KiB) Viewed 20 times
The power supply is to provide an output of +5V and part of the circuit is shown in Fig. QA2. Complete the circuit with a full wave bridge rectifier. The components available to you are listed in Table QA2 below. [7 Marks) 220Vrms Vo = +5V w 1 Fig. QA2 Diode Capacitor HH IC regulator IN OUT GND Table. QA2
