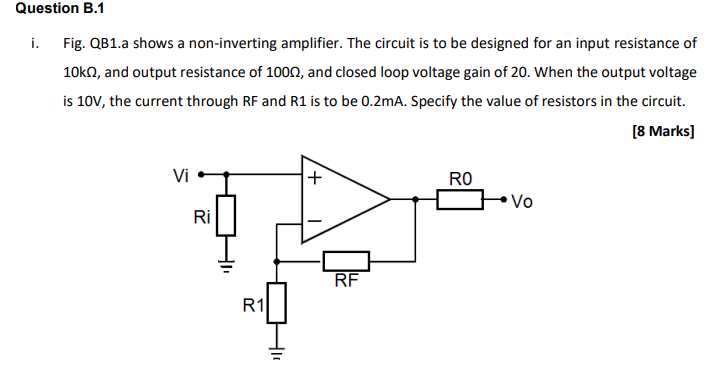

Fig. QB1.a shows a non-inverting amplifier. The circuit is to be
designed for an input resistance of 10kΩ, and output resistance of
100Ω, and closed loop voltage gain of 20. When the output voltage
is 10V, the current through RF and R1 is to be 0.2mA. Specify the
value of resistors in the circuit.
Fig Qb1 A Shows A Non Inverting Amplifier The Circuit Is To Be Designed For An Input Resistance Of 10kohm And Output Re 1 (39.02 KiB) Viewed 26 times
Question B.1 i. Fig. QB1.a shows a non-inverting amplifier. The circuit is to be designed for an input resistance of 10kn, and output resistance of 1000, and closed loop voltage gain of 20. When the output voltage is 10V, the current through RF and R1 is to be 0.2mA. Specify the value of resistors in the circuit. [8 Marks] Vi + RO Vo Ri RF R1
