Part A A resistor denoted as RL is connected in parallel with the capacitor in the circuit in (Figure 1). The loaded low

[answerhappygod]

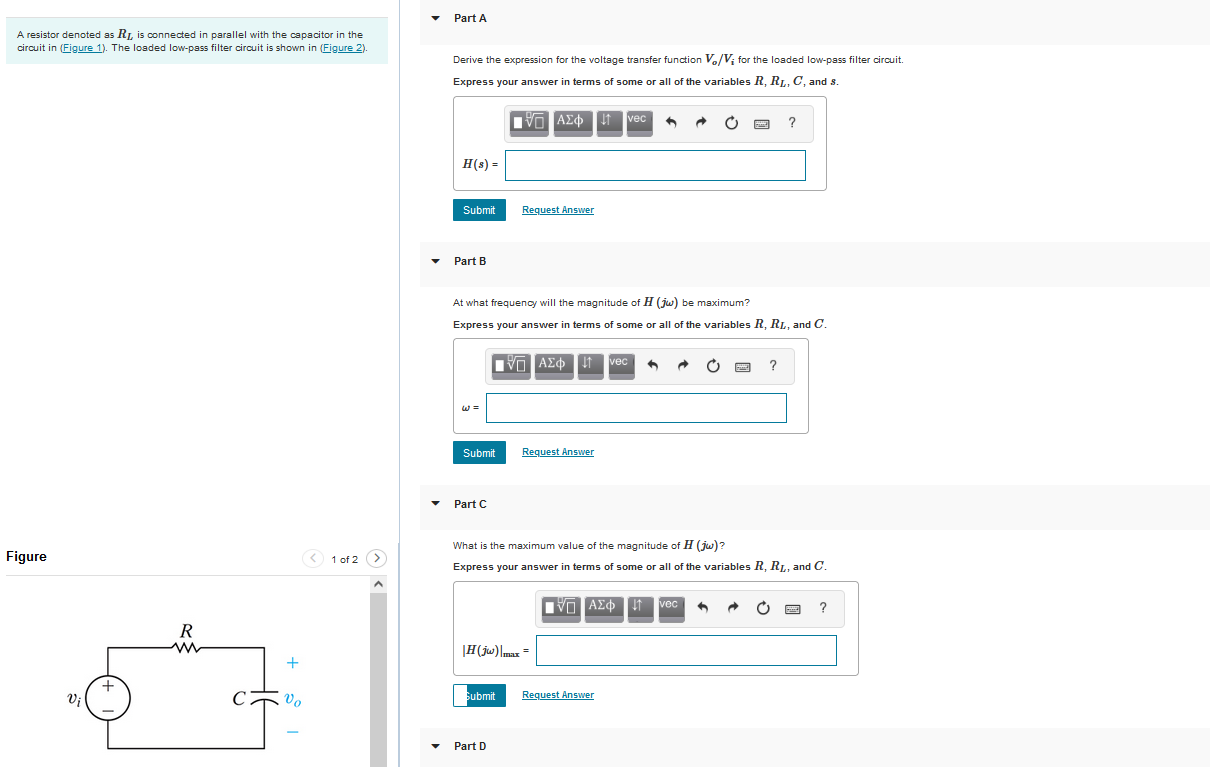

Part A A Resistor Denoted As Rl Is Connected In Parallel With The Capacitor In The Circuit In Figure 1 The Loaded Low 1 (58.19 KiB) Viewed 25 times

Part A A resistor denoted as RL is connected in parallel with the capacitor in the circuit in (Figure 1). The loaded low-pass filter circuit is shown in Figure 2). Derive the expression for the voltage transfer function V/V; for the loaded low-pass filter circuit. Express your answer in terms of some or all of the variables R, RC, and s. ΠΡΟΙΑΣφ Ι! vec ? H(S) = Submit Request Answer Part B At what frequency will the magnitude of H (jw) be maximum? Express your answer terms of some or all of the variables R, RL, and C. IVO AXO IT vec Submit Request Answer Part C Figure 1 of 2 > What is the maximum value of the magnitude of H (jw)? Express your answer in terms of some or all of the variables R, RL, and C. VO AED IT vec h c ? R H(jw) + + V V. Submit Request Answer Part D
