Problem AC-6/ A R2 V Ri L С Data: U is a sinusoidal voltage with a frequency of 50 Hz. The ideal voltmeter (infinite int

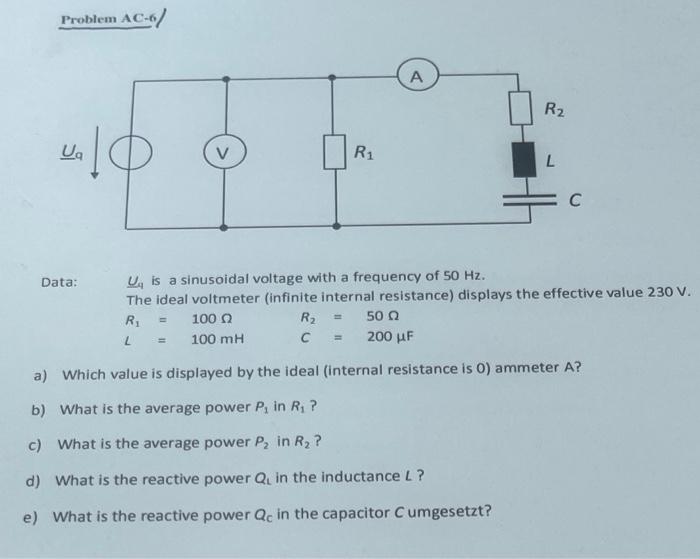

Problem AC-6/ A R2 V Ri L С Data: U is a sinusoidal voltage with a frequency of 50 Hz. The ideal voltmeter (infinite internal resistance) displays the effective value 230 V. R 100 Ω R2 50 Ω 2 100 mH с 200 uF a) Which value is displayed by the ideal (internal resistance is 0) ammeter A? b) What is the average power P, in R, ? c) What is the average power P, in R2 ? d) What is the reactive power Q in the inductance L? e) What is the reactive power Qc in the capacitor Cumgesetzt?
