Q6. The figure below shows a Zener diode voltage regulator circuit with Vzo = 2.7 V and rz = 50 Ω. (a) Determine the inp
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q6. The figure below shows a Zener diode voltage regulator circuit with Vzo = 2.7 V and rz = 50 Ω. (a) Determine the inp

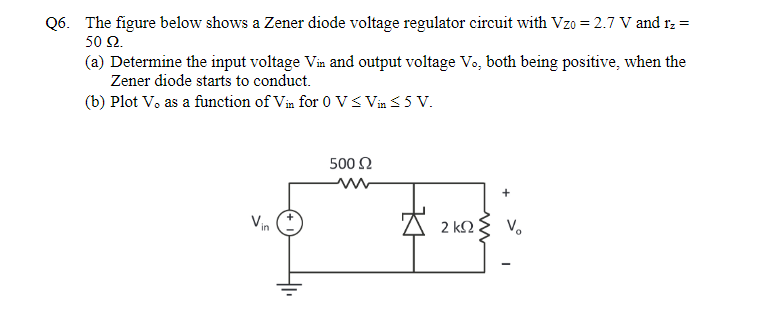

Q6. The figure below shows a Zener diode voltage regulator circuit with Vzo = 2.7 V and rz = 50 Ω. (a) Determine the input voltage Vin and output voltage Vo, both being positive, when the Zener diode starts to conduct. (b) Plot V. as a function of Vin for 0 V<Vin S5V. 500 Ω + Vin 2 ΚΩ V.
