Q4. Find V. and I, in the circuit below with (1) ideal diode model, (11) offset diode model (VF = 0.6 V). 2 V V. w 422 8

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q4. Find V. and I, in the circuit below with (1) ideal diode model, (11) offset diode model (VF = 0.6 V). 2 V V. w 422 8

Post by answerhappygod »

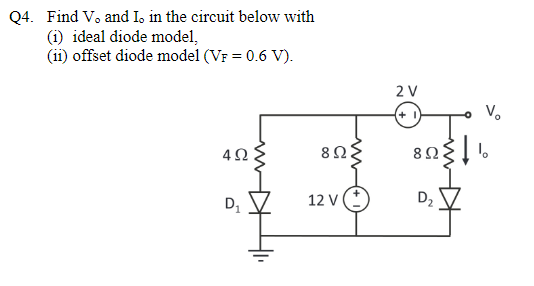

Q4 Find V And I In The Circuit Below With 1 Ideal Diode Model 11 Offset Diode Model Vf 0 6 V 2 V V W 422 8 1
