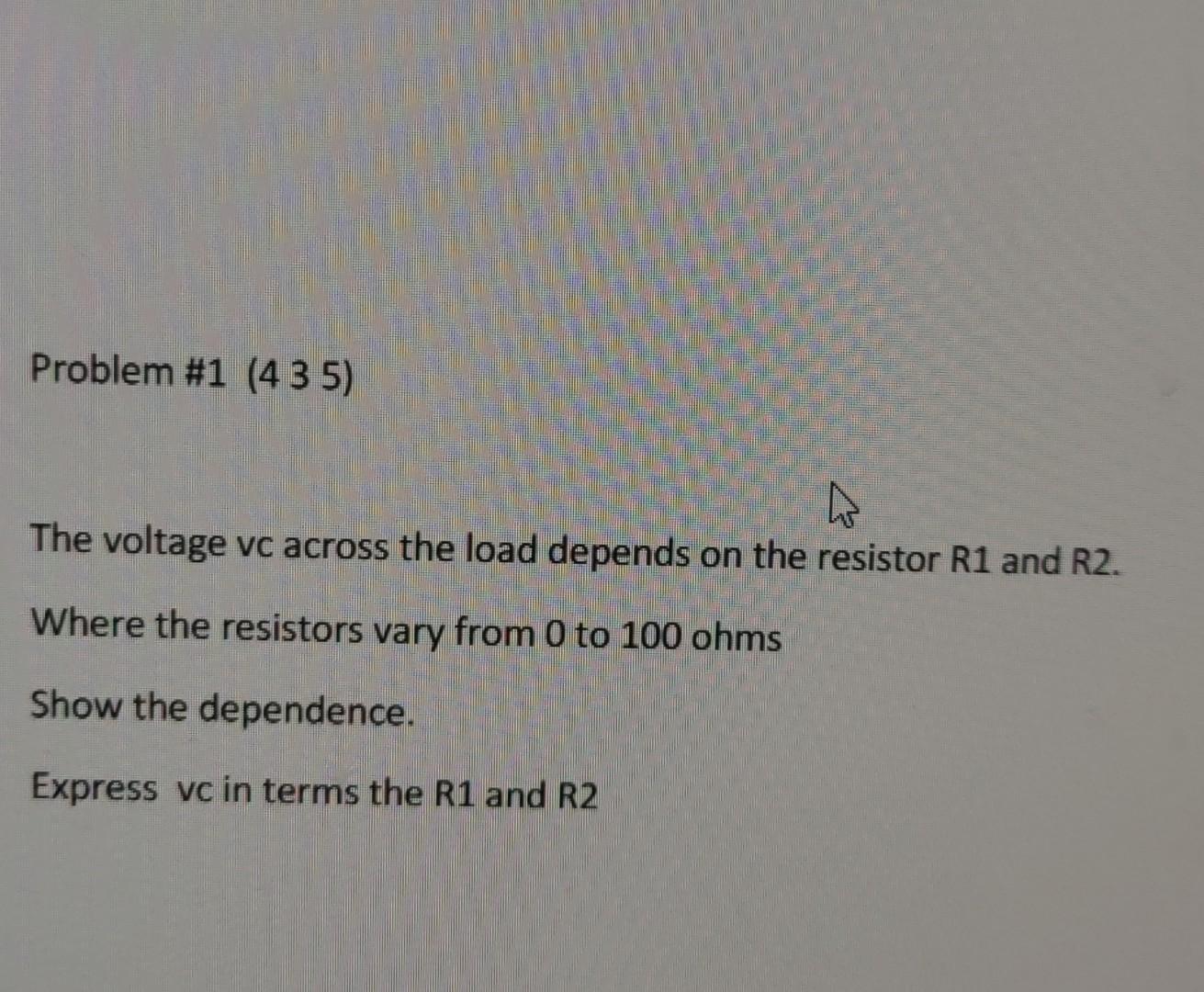

Problem #1 (435) The voltage vc across the load depends on the resistor R1 and R2. Where the resistors vary from 0 to 100 ohms Show the dependence. Express vc in terms the R1 and R2

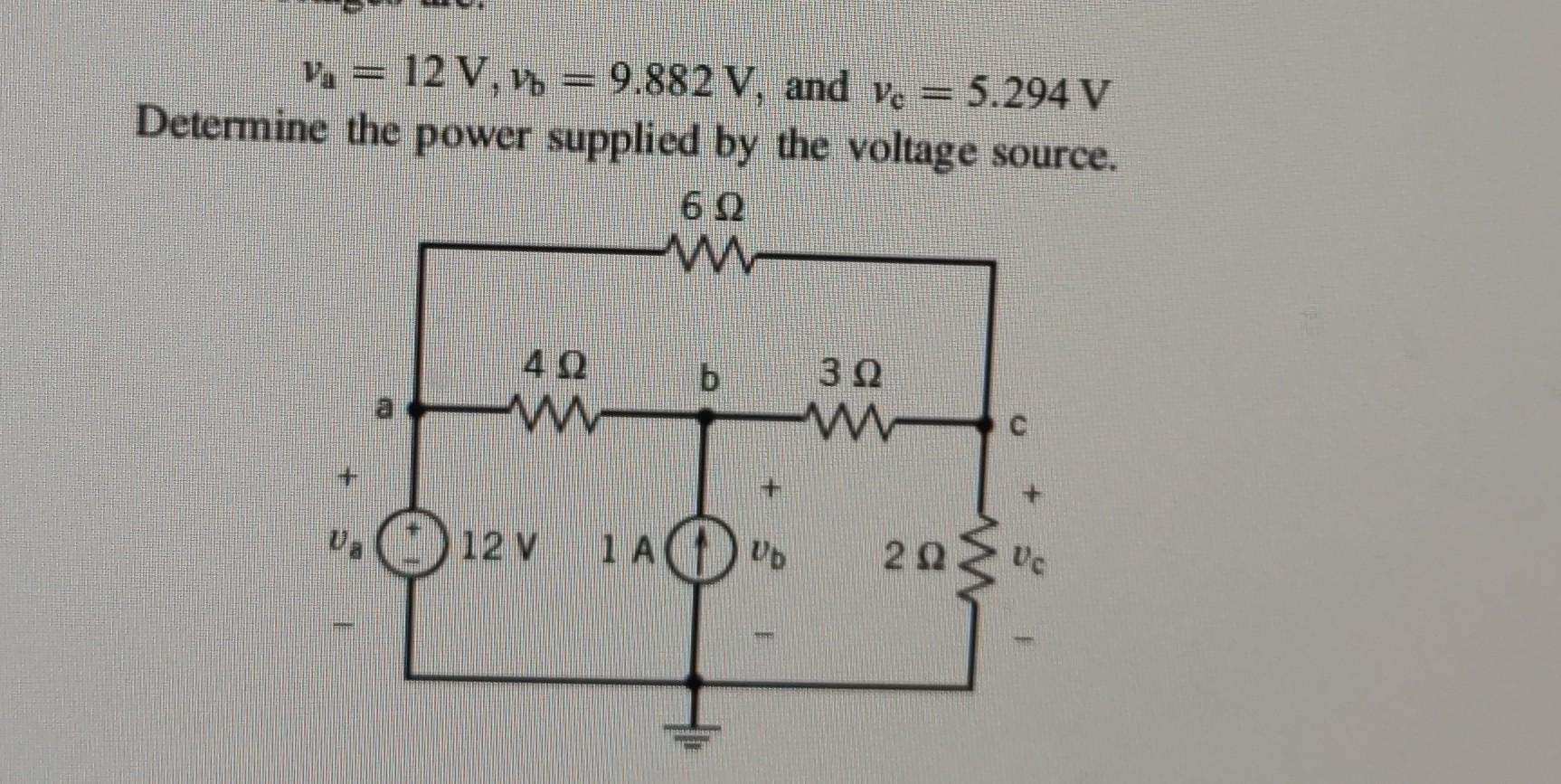

v, = 12 V,» = 9.882V, and ve = 5.294 V Determine the power supplied by the voltage source. 6 Ω w 4 22 b 32 W 12 V 1A Uь 2 Ω 20 v
