Question 2 (14 points, 17 minutes) Fig. O2a shows an ac circuit where V. (1) - 12 cos1000: V. C-250 F, and R, -30 03:49

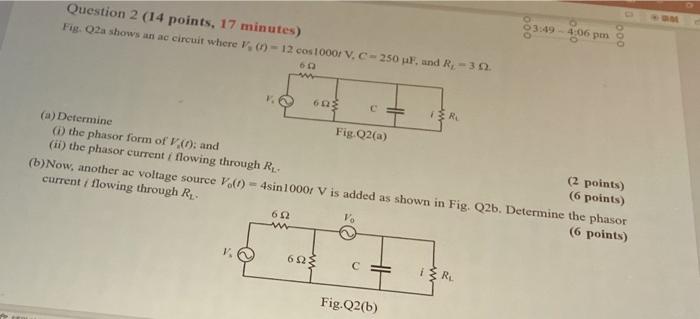

Question 2 (14 points, 17 minutes) Fig. O2a shows an ac circuit where V. (1) - 12 cos1000: V. C-250 F, and R, -30 03:49 - 4:06 pen 000 6023 СЕ SR Fig.02(a) (a) Determine (i) the phasor form of Vo: and (2 points) (ii) the phasor current flowing through Rp. (6 points) (b)Now, another ac voltage source V. - 4sin 1000/ V is added as shown in Fig. Q2b. Determine the phasor current flowing through R. (6 points) 692 VO w 6923 IZR Fig.Q2(b)
