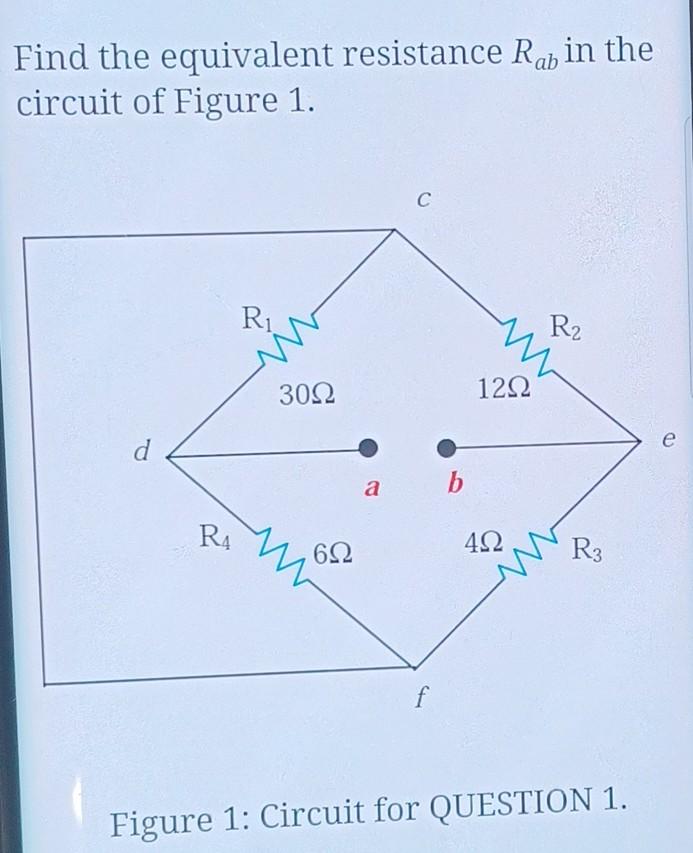

Find the equivalent resistance Rab in the circuit of Figure 1. С R1 R2 YR 3092 1222 e d a b. Rihan 6Ω 4.92 R3 f Figure 1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Find the equivalent resistance Rab in the circuit of Figure 1. С R1 R2 YR 3092 1222 e d a b. Rihan 6Ω 4.92 R3 f Figure 1

Post by answerhappygod »

1
1 (50.57 KiB) Viewed 36 times
2
2 (39.56 KiB) Viewed 36 times
Find the equivalent resistance Rab in the circuit of Figure 1. С R1 R2 YR 3092 1222 e d a b. Rihan 6Ω 4.92 R3 f Figure 1: Circuit for QUESTION 1.

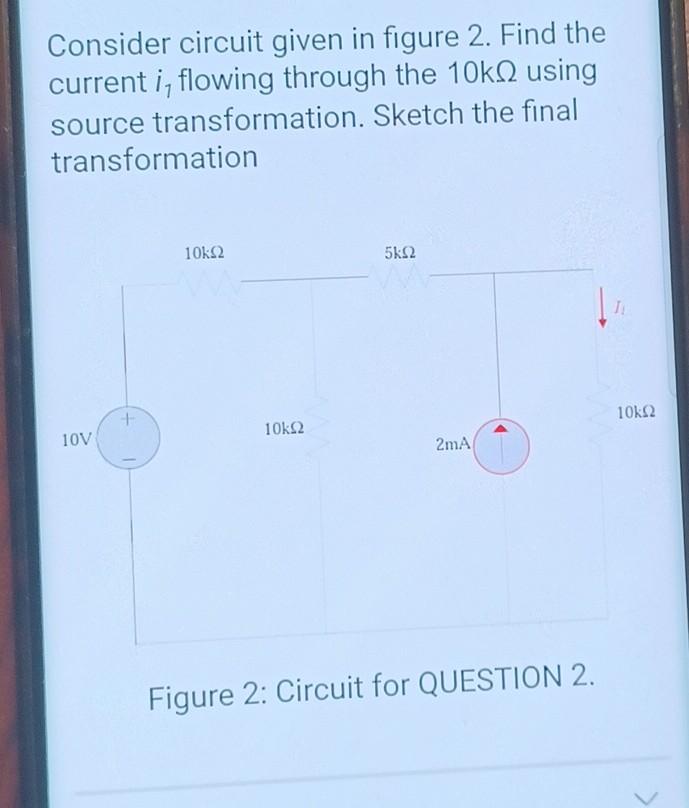

Consider circuit given in figure 2. Find the current i, flowing through the 10k2 using source transformation. Sketch the final transformation 10592 5ΚΩ + 10kΩ 10kΩ 10V 2mA Figure 2: Circuit for QUESTION 2.
