make sure your handwriting is readable.

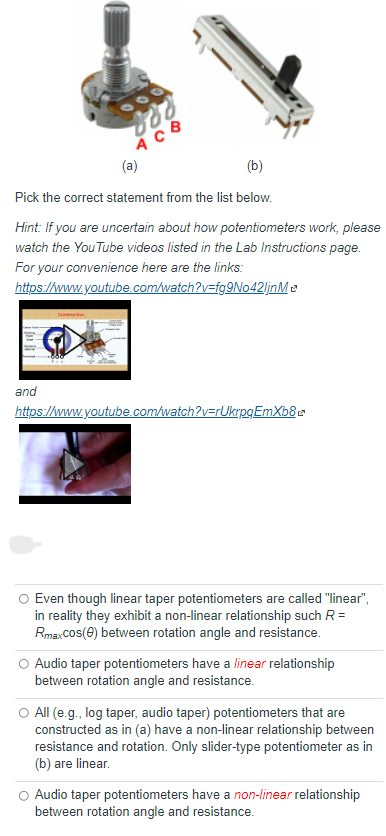

von 4 CB (a) (b) Pick the correct statement from the list below. Hint: If you are uncertain about how potentiometers work, please watch the YouTube videos listed in the Lab Instructions page. For your convenience here are the links: and Even though linear taper potentiometers are called "linear", in reality they exhibit a non-linear relationship such R= Rmaxcos() between rotation angle and resistance. Audio taper potentiometers have a linear relationship between rotation angle and resistance. O All (e.g., log taper, audio taper) potentiometers that are constructed as in (a) have a non-linear relationship between resistance and rotation. Only slider-type potentiometer as in (b) are linear Audio taper potentiometers have a non-linear relationship between rotation angle and resistance.
