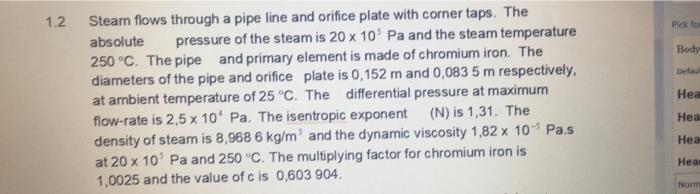

1.2 Plek to Body Hea Steam flows through a pipe line and orifice plate with corner taps. The absolute pressure of the steam is 20 x 10 Pa and the steam temperature 250 °C. The pipe and primary element is made of chromium iron. The diameters of the pipe and orifice plate is 0,152 m and 0,083 5 m respectively, at ambient temperature of 25°C. The differential pressure at maximum flow-rate is 2,5 x 10Pa. The isentropic exponent (N) is 1,31. The density of steam is 8,968 6 kg/m and the dynamic viscosity 1,82 x 10 Pas at 20 x 10' Pa and 250 °C. The multiplying factor for chromium iron is 1,0025 and the value of cis 0,603 904. Hea Hea Hear Nam
