Q5. Below is an e-NFA that models a new vending machine proposed at Legon Supermarket; ε 91 0 Start do 43 94 E 42 a) Det

[answerhappygod]

1 (24.61 KiB) Viewed 24 times

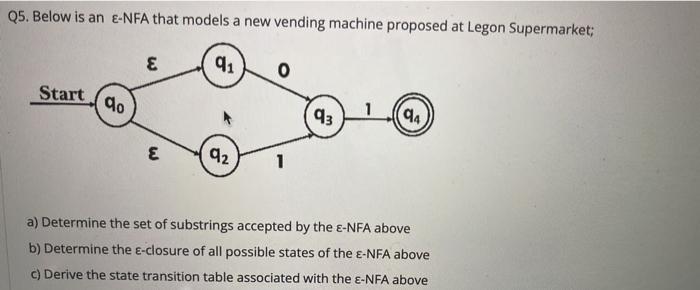

Q5. Below is an e-NFA that models a new vending machine proposed at Legon Supermarket; ε 91 0 Start do 43 94 E 42 a) Determine the set of substrings accepted by the e-NFA above b) Determine the e-closure of all possible states of the E-NFA above c) Derive the state transition table associated with the E-NFA above
