100 mm 3) 24 mm 360 mm 24 mm N A X mm 38 mm 200 mm a) Calculate the dimension "x" to the centroid of the section shown a

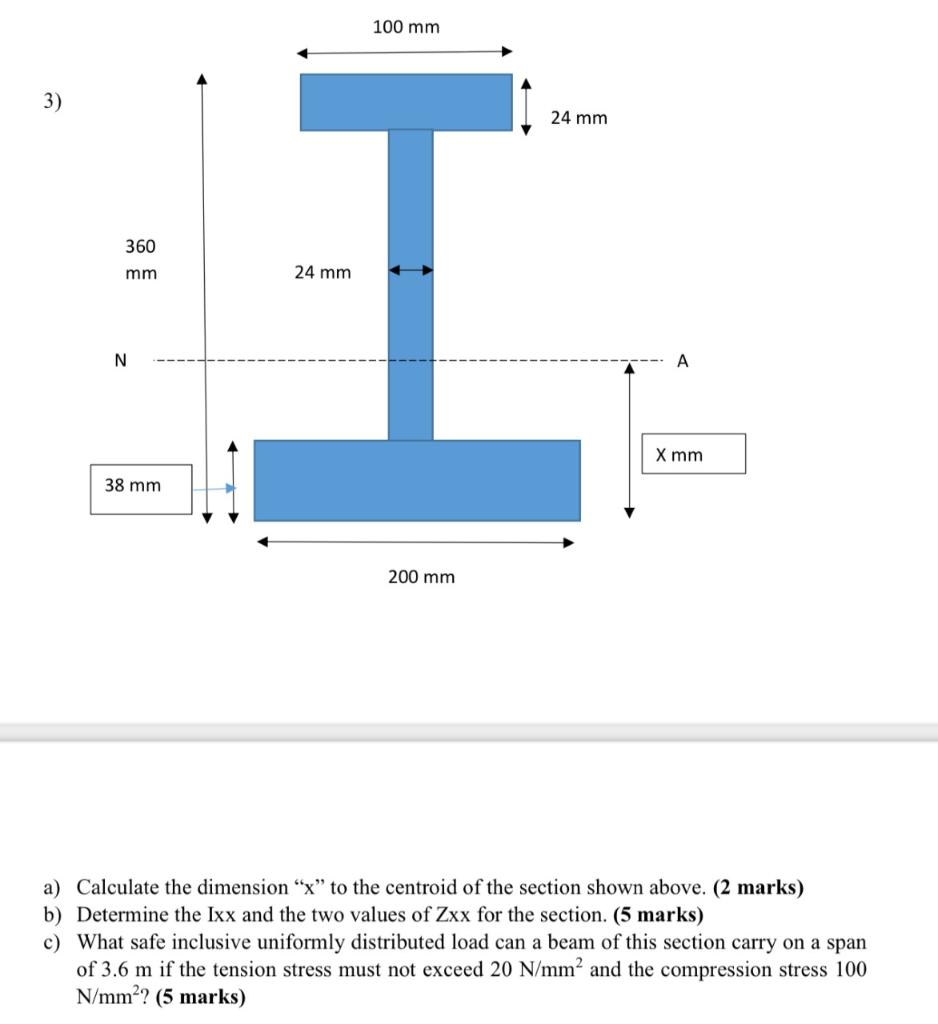

100 mm 3) 24 mm 360 mm 24 mm N A X mm 38 mm 200 mm a) Calculate the dimension "x" to the centroid of the section shown above. (2 marks) b) Determine the Ixx and the two values of Zxx for the section. (5 marks) c) What safe inclusive uniformly distributed load can a beam of this section carry on a span of 3.6 m if the tension stress must not exceed 20 N/mm² and the compression stress 100 N/mm²? (5 marks)
