1) The cable in the figure below with the end supports A and B at equal elevations, has a span of 200 metres and a sag o
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1) The cable in the figure below with the end supports A and B at equal elevations, has a span of 200 metres and a sag o

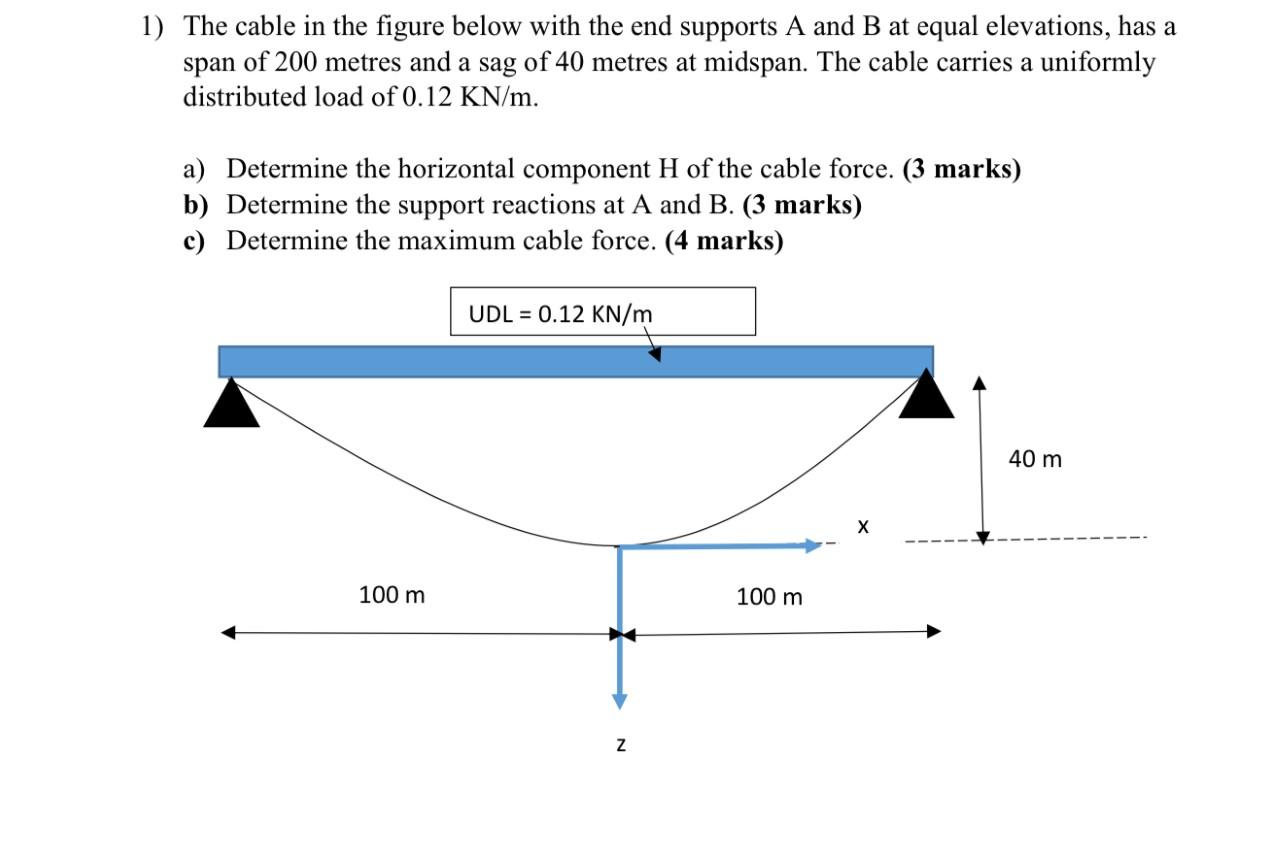

1) The cable in the figure below with the end supports A and B at equal elevations, has a span of 200 metres and a sag of 40 metres at midspan. The cable carries a uniformly distributed load of 0.12 KN/m. a) Determine the horizontal component H of the cable force. (3 marks) b) Determine the support reactions at A and B. (3 marks) c) Determine the maximum cable force. (4 marks) UDL = 0.12 kN/m 40 m X 100 m 100 m z
