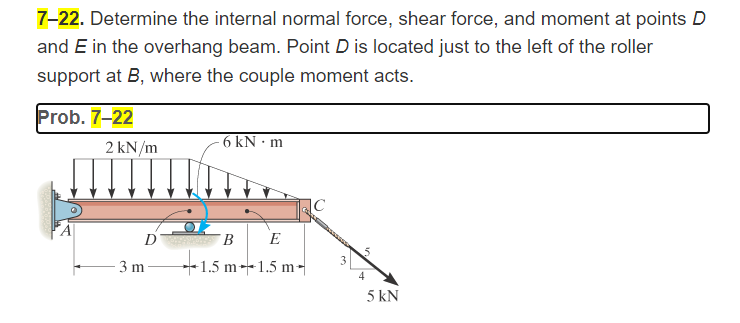

7-22. Determine the internal normal force, shear force, and moment at points D and E in the overhang beam. Point D is located just to the left of the roller support at B, where the couple moment acts. Prob. 7-22 2 kN/m 6 kNm с D B E 5 3 3 m -1.5 m 1.5 m 4 5 KN
