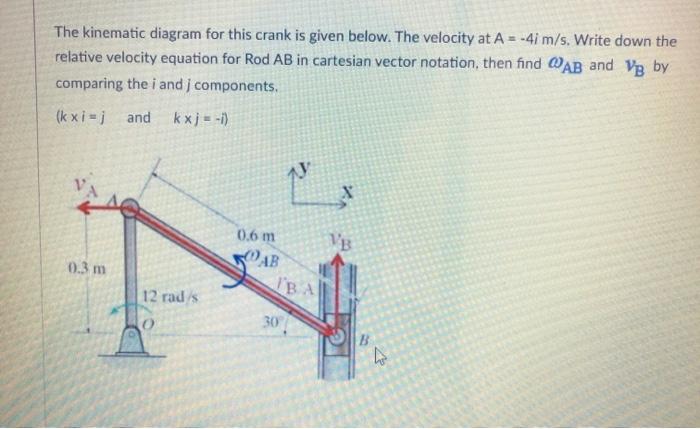

The kinematic diagram for this crank is given below. The velocity at A=.4i m/s. Write down the relative velocity equatio
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The kinematic diagram for this crank is given below. The velocity at A=.4i m/s. Write down the relative velocity equatio
The kinematic diagram for this crank is given below. The velocity at A=.4i m/s. Write down the relative velocity equation for Rod AB in cartesian vector notation, then find AB and Vg by comparing the i and components. (k xi=j and k x = -1) X 0.6 m VB "АВ ТВА 0.3 m 12 rad s 0 30 B
