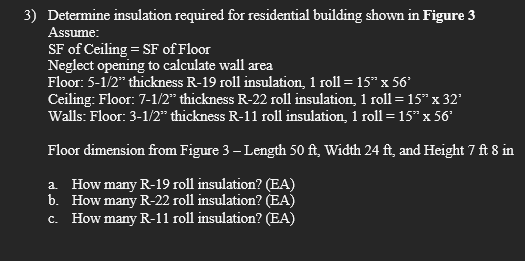

3) Determine insulation required for residential building shown in Figure 3 Assume: SF of Ceiling = SF of Floor Neglect opening to calculate wall area Floor: 5-1/2" thickness R-19 roll insulation, 1 roll = 15" x 56' Ceiling: Floor: 7-1/2" thickness R-22 roll insulation, 1 roll = 15" x 32' Walls: Floor: 3-1/2" thickness R-11 roll insulation, 1 roll = 15" x 56% Floor dimension from Figure 3 - Length 50 A, Width 24 ft, and Height 7 ft 8 in a How many R-19 roll insulation? (EA) b. How many R-22 roll insulation? (EA) C. How many R-11 roll insulation? (EA)

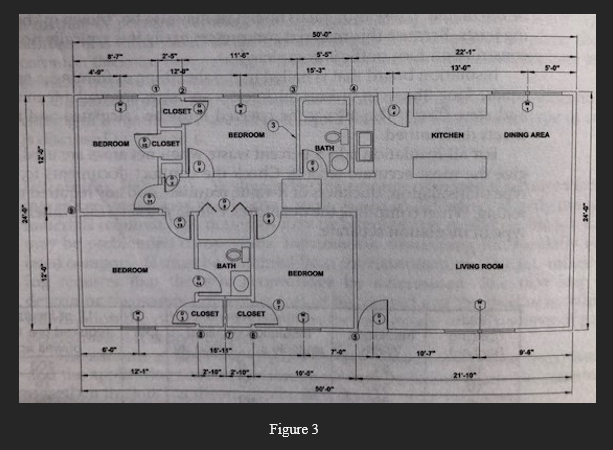

300- 22-1 12-0 13.0- $40 CLOSET BEDROOM KITCHEN DINING AREA BEDROOM CLOSET BATH 170 BATH LIVING ROOM BEDROOM BEDROOM CLOSET CLOSET EC 18.15 10. 7.10.17:01 104 21-10 Figure 3
