Problem 6: For the shown beam and loads, select the lightest satisfactory W shape section if Fy=50 ksi. Lateral bracing

Post by answerhappygod »

Problem 6 For The Shown Beam And Loads Select The Lightest Satisfactory W Shape Section If Fy 50 Ksi Lateral Bracing 1
Problem 6 For The Shown Beam And Loads Select The Lightest Satisfactory W Shape Section If Fy 50 Ksi Lateral Bracing 1 (24.92 KiB) Viewed 15 times

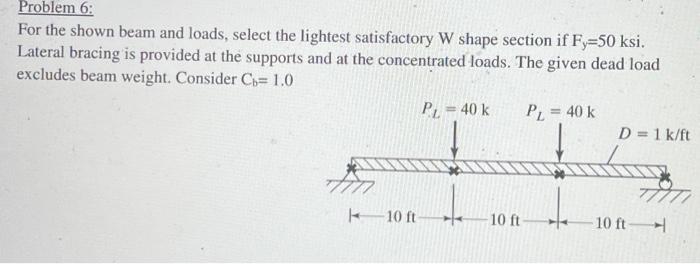

Problem 6: For the shown beam and loads, select the lightest satisfactory W shape section if Fy=50 ksi. Lateral bracing is provided at the supports and at the concentrated loads. The given dead load excludes beam weight. Consider Co= 1.0 P = 40k PL = 40k D = 1 k/ft 777 10 ft 10 ft 10 ft
