Problem 2: Three uniformly distributed loads of 100 kPa each are applied to 10 x 10 m square areas on the soil profile s

[answerhappygod]

Problem 2 Three Uniformly Distributed Loads Of 100 Kpa Each Are Applied To 10 X 10 M Square Areas On The Soil Profile S 1 (47.27 KiB) Viewed 28 times

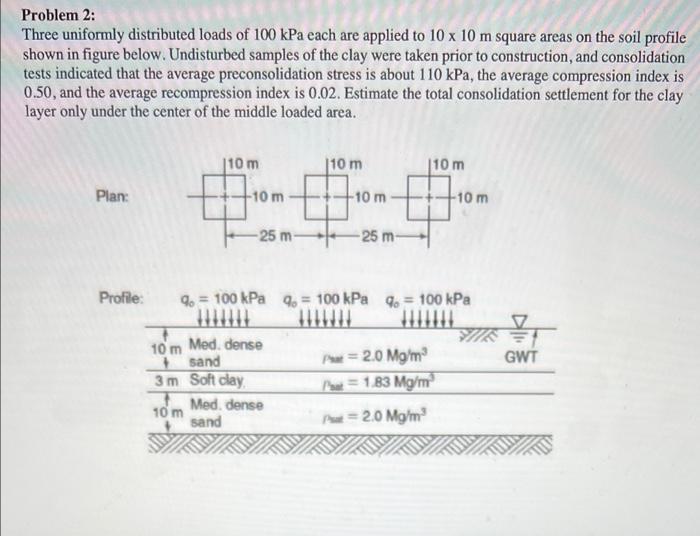

Problem 2: Three uniformly distributed loads of 100 kPa each are applied to 10 x 10 m square areas on the soil profile shown in figure below. Undisturbed samples of the clay were taken prior to construction, and consolidation tests indicated that the average preconsolidation stress is about 110 kPa, the average compression index is 0.50, and the average recompression index is 0.02. Estimate the total consolidation settlement for the clay layer only under the center of the middle loaded area. 110 m 110 m 110 m Plan: -10 m -10 m +10 m -25 m - 25 m Profile: 10 m 9. = 100 kPa 9. = 100 kPa 4. = 100 kPa HIWW Med. dense sand = 2.0 Mg/m 3 m Soft clay Most = 1.83 Mg/m Med dense 10 m sand Put = 2.0 Mg/m GWT
