Problem 1 Given an element with stresses as indicated in the figure below, find: a) The major and minor principal stress

[answerhappygod]

Problem 1 Given An Element With Stresses As Indicated In The Figure Below Find A The Major And Minor Principal Stress 1 (281.72 KiB) Viewed 32 times

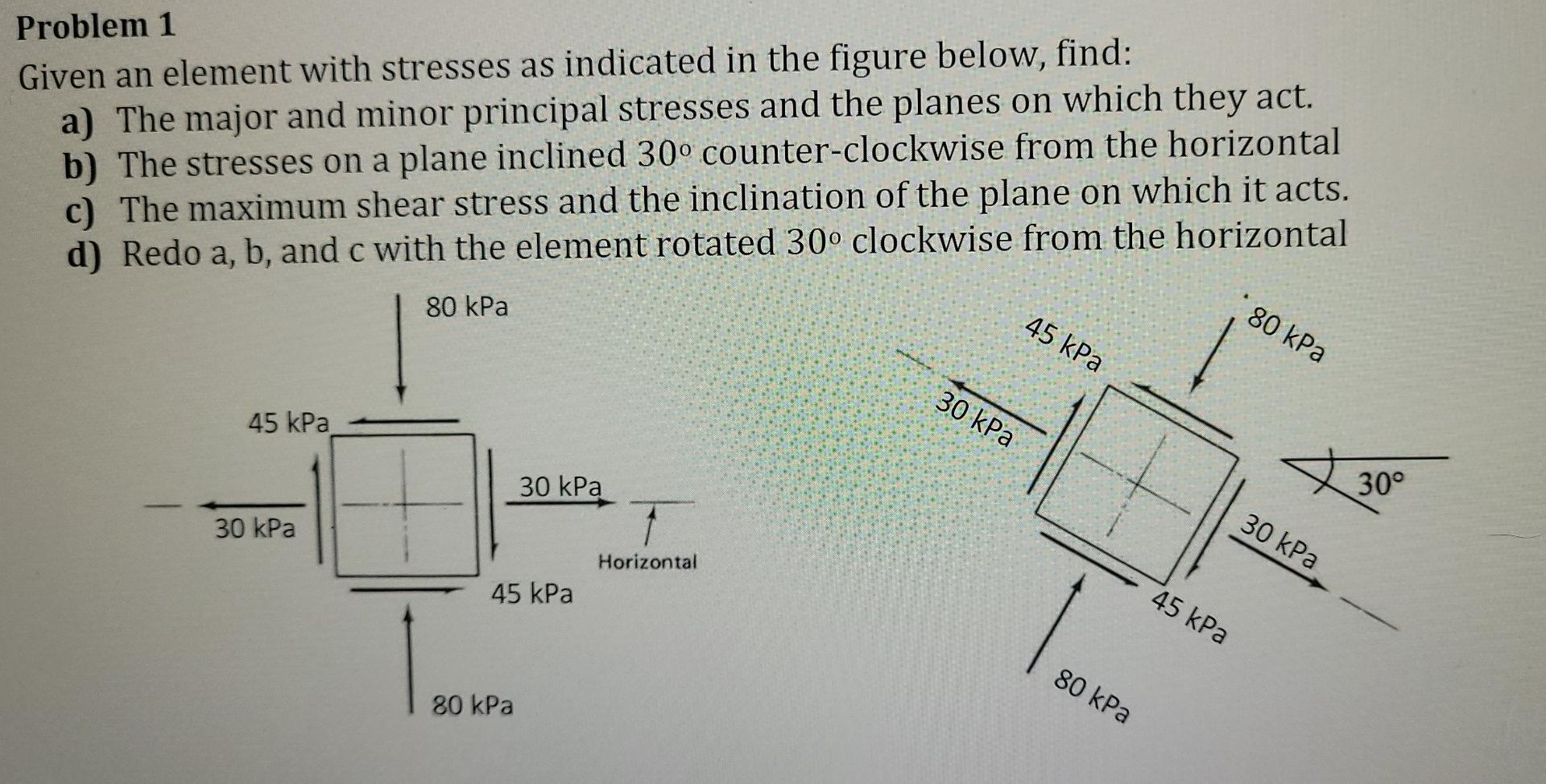

Problem 1 Given an element with stresses as indicated in the figure below, find: a) The major and minor principal stresses and the planes on which they act. b) The stresses on a plane inclined 30° counter-clockwise from the horizontal c) The maximum shear stress and the inclination of the plane on which it acts. d) Redo a, b, and c with the element rotated 30° clockwise from the horizontal 80 kPa 45 kPa 80 kPa 30 kPa 45 kPa x 30 kPa 30° 30 kPa T 30 kPa Horizontal 45 kPa 45 kPa 80 kPa 80 kPa
