From the given Bode plot of an electrochemical system, determine the Rp and Rs 10° 10-1 IZI (Magnitude), 2 10-2 10-3 10-

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

From the given Bode plot of an electrochemical system, determine the Rp and Rs 10° 10-1 IZI (Magnitude), 2 10-2 10-3 10-

Post by answerhappygod »

From The Given Bode Plot Of An Electrochemical System Determine The Rp And Rs 10 10 1 Izi Magnitude 2 10 2 10 3 10 1
From The Given Bode Plot Of An Electrochemical System Determine The Rp And Rs 10 10 1 Izi Magnitude 2 10 2 10 3 10 1 (47.7 KiB) Viewed 17 times

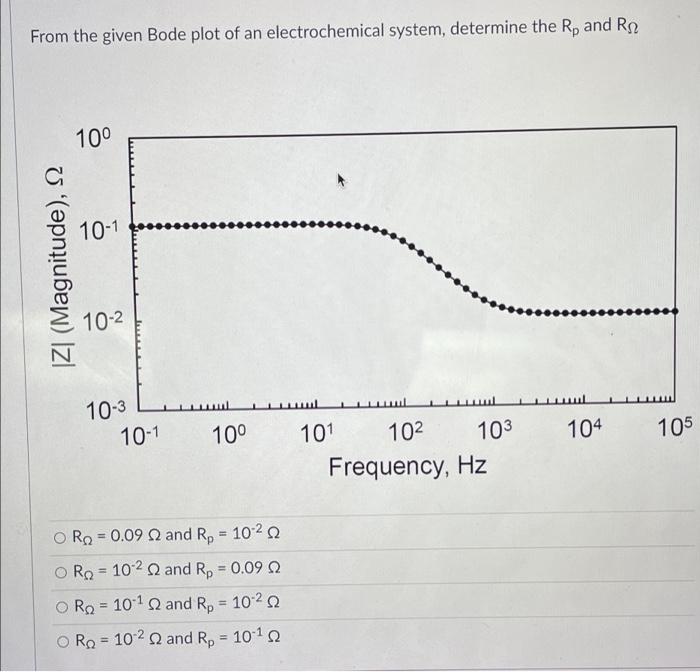

From the given Bode plot of an electrochemical system, determine the Rp and Rs 10° 10-1 IZI (Magnitude), 2 10-2 10-3 10-1 100 104 105 101 102 103 Frequency, Hz O Re = 0.09 2 and Rp = 1022 Re = 102 and Rp = 0.092 O Re = 10-12 and Rp = 10-22 O Re = 102 2 and Rp = 10-12
