Part A - Laminar flow Water flows through a circular pipe with e = 4.5*10-2 mm. D = 11 cm, and L = 26 m at a rate of Q =

[answerhappygod]

Part A Laminar Flow Water Flows Through A Circular Pipe With E 4 5 10 2 Mm D 11 Cm And L 26 M At A Rate Of Q 1 (55.89 KiB) Viewed 19 times

Part A Laminar Flow Water Flows Through A Circular Pipe With E 4 5 10 2 Mm D 11 Cm And L 26 M At A Rate Of Q 2 (83.89 KiB) Viewed 19 times

Part A Laminar Flow Water Flows Through A Circular Pipe With E 4 5 10 2 Mm D 11 Cm And L 26 M At A Rate Of Q 3 (64.59 KiB) Viewed 19 times

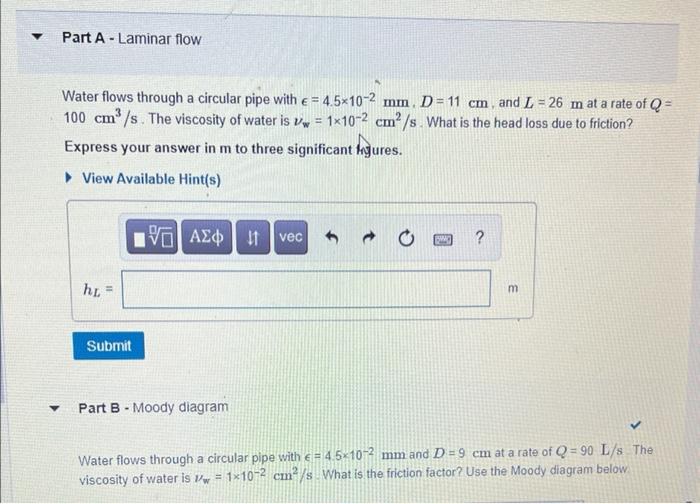

Part A - Laminar flow Water flows through a circular pipe with e = 4.5*10-2 mm. D = 11 cm, and L = 26 m at a rate of Q = 100 cm/s. The viscosity of water is vw = 1*10-2 cm/s. What is the head loss due to friction? Express your answer in m to three significant hgures. View Available Hint(s) VO ΑΣφ 11 vec hi m Submit Part B - Moody diagram Water flows through a circular pipe with € = 4 5x10-2 mm and D=9 cm at a rate of Q = 90 L/s The viscosity of water is 1 = 1*10-2 cin/s What is the friction factor? Use the Moody diagram below.

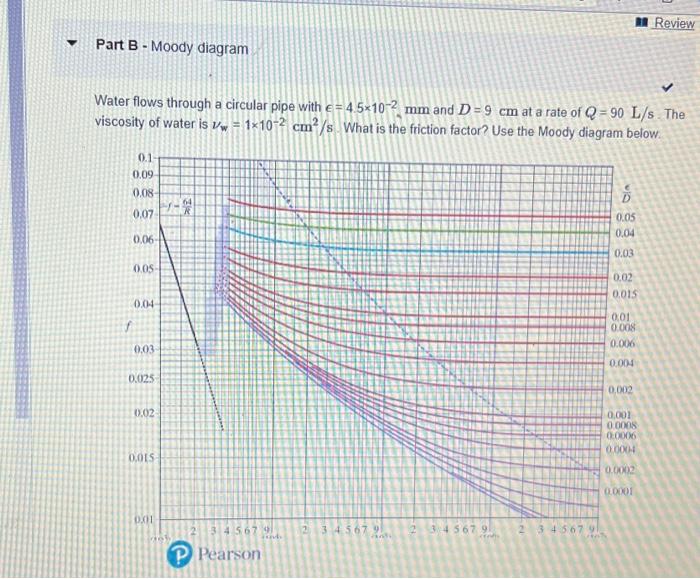

Review Part B - Moody diagram Water flows through a circular pipe with e= 4.510-2 mm and D = 9 cm at a rate of Q=90 L/s. The viscosity of water is vw = 1*10-2 cm²/s What is the friction factor? Use the Moody diagram below. 0.1 0.09 0.08 0,07 04 0.05 0.04 0.06 0.03 0.05 0.02 0,015 0.04 0.01 0.008 0.000 0.03 0.004 0.025 0,002 01.02 0.001 0 000 00006 0004 DOIS 0.0002 0.0001 OX11 2 34.567 34 567.9 2 3 4 567.9 2 3 4 5 67 P Pearson

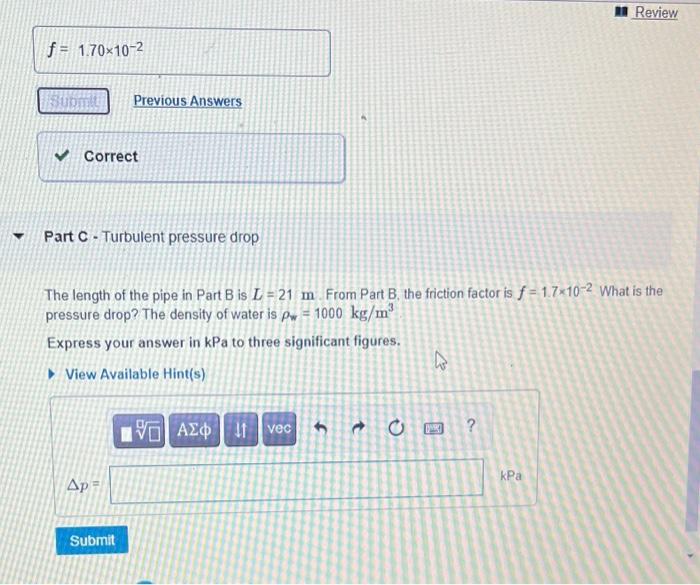

Review f = 1.70x10-2 Previous Answers ✓ Correct Part C - Turbulent pressure drop The length of the pipe in Part B is L = 21 m From Part B, the friction factor is f = 1.7-10-2 What is the pressure drop? The density of water is pw = 1000 kg/m Express your answer in kPa to three significant figures. View Available Hint(s) ET Η ΑΣφ 11 vec 国 ? kPa Ap = Submit
