Problem 1: A simply supported beam shown in figure is subjected to a uniform service dead load of 1.0 kips/ft (excluding

Post by answerhappygod »

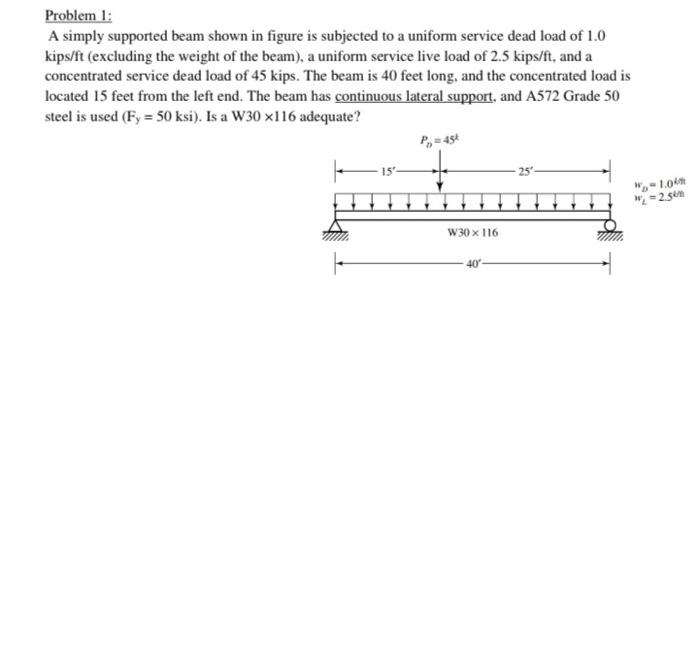

Problem 1 A Simply Supported Beam Shown In Figure Is Subjected To A Uniform Service Dead Load Of 1 0 Kips Ft Excluding 1
Problem 1 A Simply Supported Beam Shown In Figure Is Subjected To A Uniform Service Dead Load Of 1 0 Kips Ft Excluding 1 (29.08 KiB) Viewed 29 times
Problem 1: A simply supported beam shown in figure is subjected to a uniform service dead load of 1.0 kips/ft (excluding the weight of the beam), a uniform service live load of 2.5 kips/ft, and a concentrated service dead load of 45 kips. The beam is 40 feet long, and the concentrated load is located 15 feet from the left end. The beam has continuous lateral support, and A572 Grade 50 steel is used (Fy = 50 ksi). Is a W30 x116 adequate? 15 + 25 lon - 2.5 W30 x 116 40
