Problem 15.9 2 of 3 A Review Part A Consider the beam shown in (Figure 1). There is a slider at 1. El is constant Determ

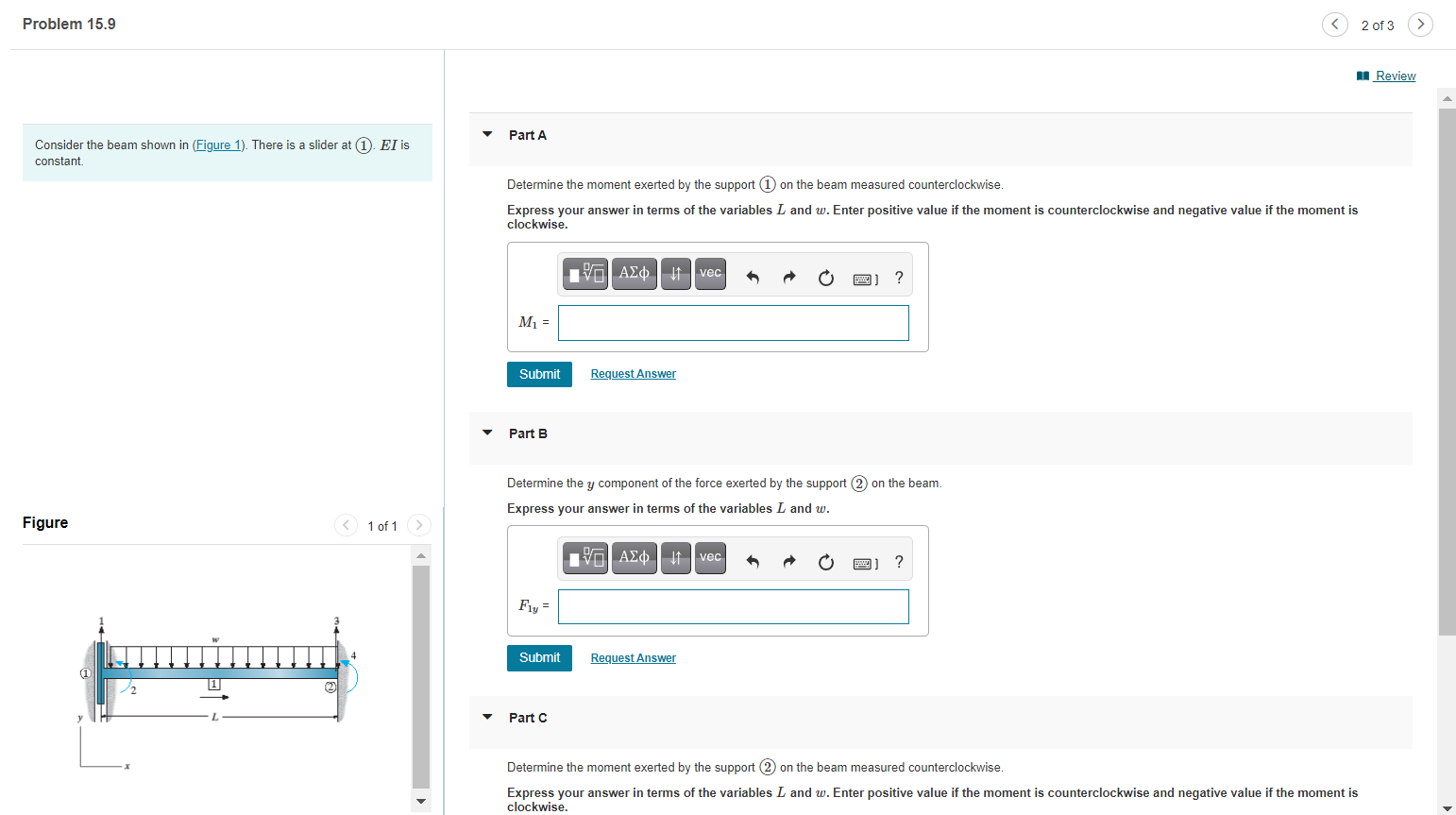

Problem 15.9 2 of 3 A Review Part A Consider the beam shown in (Figure 1). There is a slider at 1. El is constant Determine the moment exerted by the support 1 on the beam measured counterclockwise. Express your answer in terms of the variables L and w. Enter positive value if the moment is counterclockwise and negative value if the moment is clockwise. V AEQJ1 vec ? M = Submit Request Answer Part B Determine the y component of the force exerted by the support 2 on the beam. Express your answer in terms of the variables L and w. Figure < 1 of 1 IVO AQ 11 vec ? Fly = Submit Request Answer Part C Determine the moment exerted by the support 2 on the beam measured counterclockwise. Express your answer in terms of the variables L and w. Enter positive value if the moment is counterclockwise and negative value if the moment is clockwise.
