1. a) Figure 1 shows an elemental length Ax of a beam subjected to a force and moment system. Using the shear force (V)
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. a) Figure 1 shows an elemental length Ax of a beam subjected to a force and moment system. Using the shear force (V)

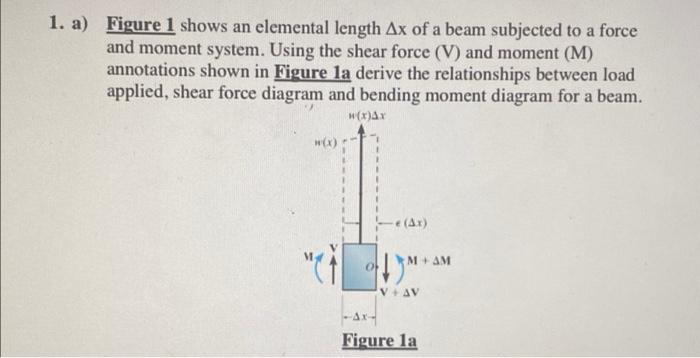

1. a) Figure 1 shows an elemental length Ax of a beam subjected to a force and moment system. Using the shear force (V) and moment (M) annotations shown in Figure la derive the relationships between load applied, shear force diagram and bending moment diagram for a beam. w(x)&Y w(x) - (A2) ΜΕ ΔΜ OL V AV -x Figure la
