transportation Engineering. plz do it fast and accurate. I will surely upvote

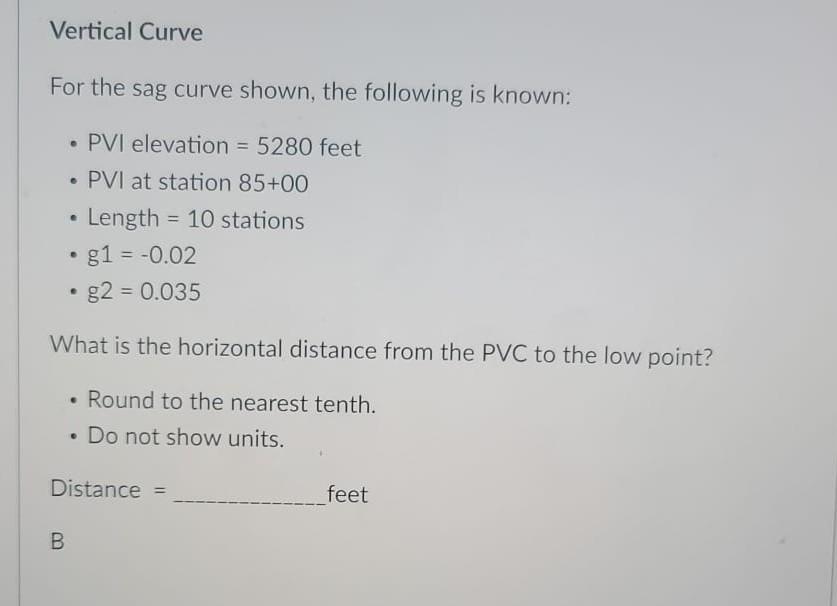

Vertical Curve For the sag curve shown, the following is known: • PVI elevation = 5280 feet • PVI at station 85+00 • Length = 10 stations g1 = -0.02 g2 = 0.035 e = e What is the horizontal distance from the PVC to the low point? . • Round to the nearest tenth. • Do not show units. Distance = feet B

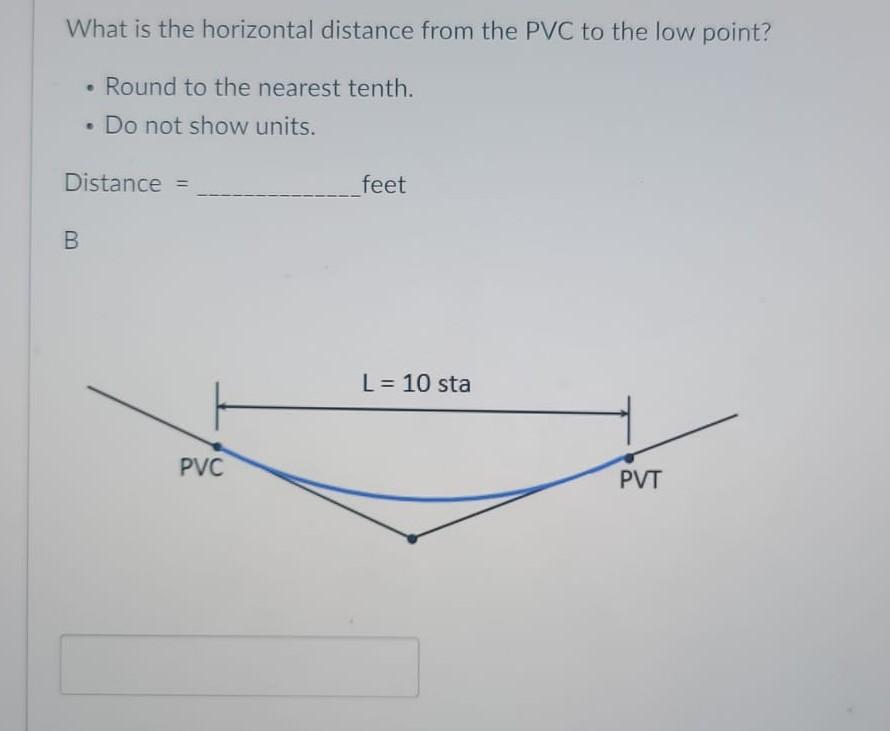

What is the horizontal distance from the PVC to the low point? • Round to the nearest tenth. . Do not show units. . Distance = feet B. L = 10 sta PVC PVT
