Problem 6.6 The layout of a water distribution system is shown in Fig.6.23. All pipes of the network are made of plastic

[answerhappygod]

Problem 6 6 The Layout Of A Water Distribution System Is Shown In Fig 6 23 All Pipes Of The Network Are Made Of Plastic 1 (39.59 KiB) Viewed 18 times

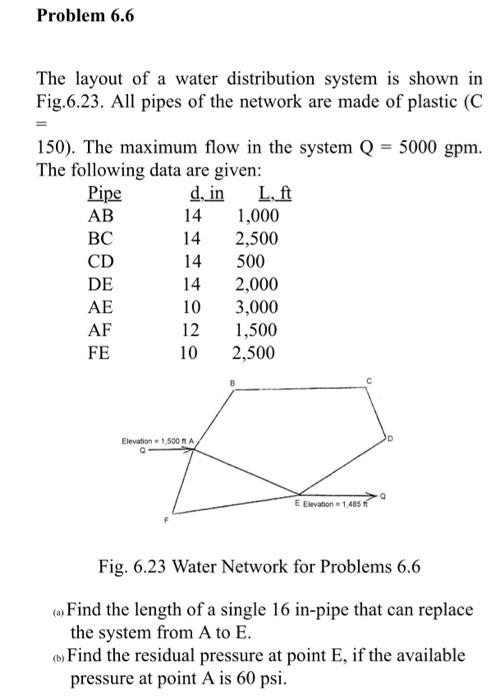

Problem 6.6 The layout of a water distribution system is shown in Fig.6.23. All pipes of the network are made of plastic (C 14 150). The maximum flow in the system Q = 5000 gpm. The following data are given: Pipe d, in L, ft AB 1,000 BC 14 2,500 CD 14 500 DE 14 2,000 AE 10 3,000 AF 1,500 FE 10 2,500 12 Elevation 1,500 A E Elevation 1 485 Fig. 6.23 Water Network for Problems 6.6 ca Find the length of a single 16 in-pipe that can replace the system from A to E. () Find the residual pressure at point E, if the available pressure at point A is 60 psi.
