Problem 6.21 The water supply system shown in Fig. 6.37 is designed to serve a small town ABDCA. The flow from the reser

Post by answerhappygod »

Problem 6 21 The Water Supply System Shown In Fig 6 37 Is Designed To Serve A Small Town Abdca The Flow From The Reser 1
Problem 6 21 The Water Supply System Shown In Fig 6 37 Is Designed To Serve A Small Town Abdca The Flow From The Reser 1 (50.36 KiB) Viewed 22 times

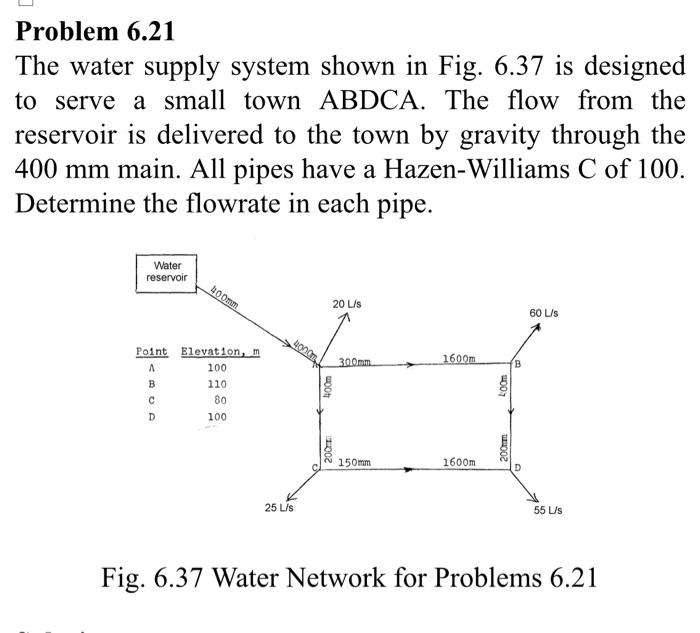

Problem 6.21 The water supply system shown in Fig. 6.37 is designed to serve a small town ABDCA. The flow from the reservoir is delivered to the town by gravity through the 400 mm main. All pipes have a Hazen-Williams C of 100. Determine the flowrate in each pipe. Water reservoir 200mm 20 L/S 60 LIS 300mm 1600m B Point Elevation m A 100 B 110 с 80 D 100 400m W007 2007 200mm 150mm 1600m 25 LIS 55 US Fig. 6.37 Water Network for Problems 6.21
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
