Question 1 10 Points Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the que

[answerhappygod]

Question 1 10 Points Draw The Shear And Moment Diagrams For The Loaded Beam After You Have The Diagrams Answer The Que 1 (88.9 KiB) Viewed 17 times

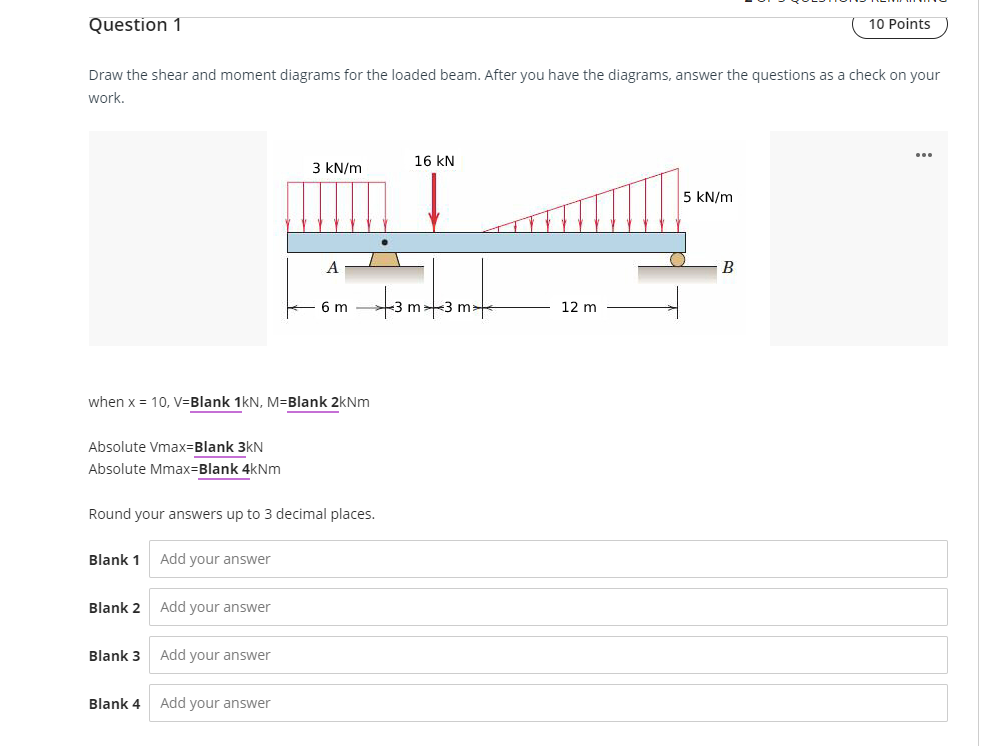

Question 1 10 Points Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work. 3 kN/m 16 KN 5 kN/m A B 6 m +3m +3m + 12 m when x = 10, V=Blank 1kN, M=Blank 2kNm Absolute Vmax=Blank 3kN Absolute Mmax=Blank 4kNm Round your answers up to 3 decimal places. Blank 1 Add your answer Blank 2 Add your answer Blank 3 Add your answer Blank 4 Add your answer
