22. Influent 1 2 3 5 6 7 EMuent 뀌 70p Label the following schematic (flow diagram) of a WWTP with the processes listed.

Post by answerhappygod »

1
1 (40.49 KiB) Viewed 20 times
Pls answer fast i will rate u up

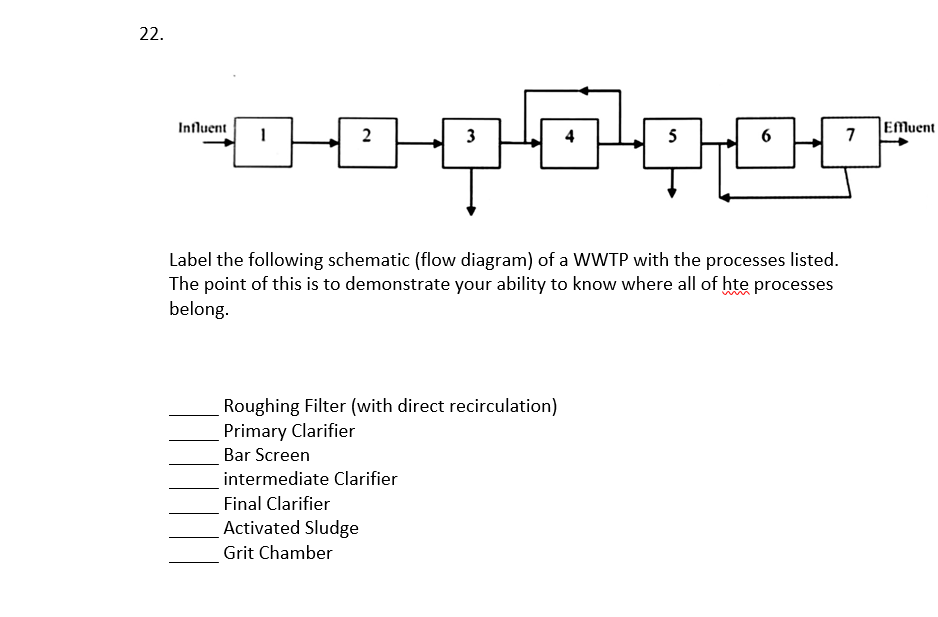

22. Influent 1 2 3 5 6 7 EMuent 뀌 70p Label the following schematic (flow diagram) of a WWTP with the processes listed. The point of this is to demonstrate your ability to know where all of hte processes belong. Roughing Filter (with direct recirculation) Primary Clarifier Bar Screen intermediate Clarifier Final Clarifier Activated Sludge Grit Chamber
