6.10 An element of soil with a maximum shear modulus of 700,000 psf and an undrained strength of 1000 psf is subjected t

[answerhappygod]

6 10 An Element Of Soil With A Maximum Shear Modulus Of 700 000 Psf And An Undrained Strength Of 1000 Psf Is Subjected T 1 (58.76 KiB) Viewed 20 times

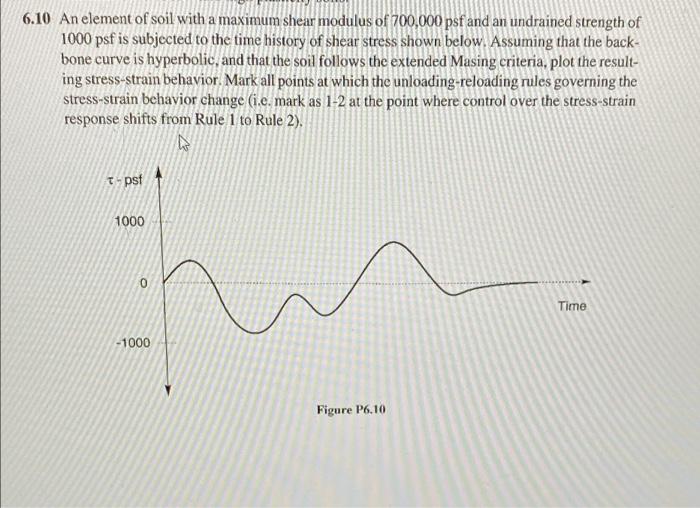

6.10 An element of soil with a maximum shear modulus of 700,000 psf and an undrained strength of 1000 psf is subjected to the time history of shear stress shown below. Assuming that the back- bone curve is hyperbolic, and that the soil follows the extended Masing criteria, plot the result- ing stress-strain behavior. Mark all points at which the unloading-reloading rules governing the stress-strain behavior change (i.e. mark as 1-2 at the point where control over the stress-strain response shifts from Rule 1 to Rule 2). t-pst 1000 Time -1000 Figure P6.10
