1. The composite material is fastened to their junction at rigid plate B and attached to rigid fixed supports at both en

Post by answerhappygod »

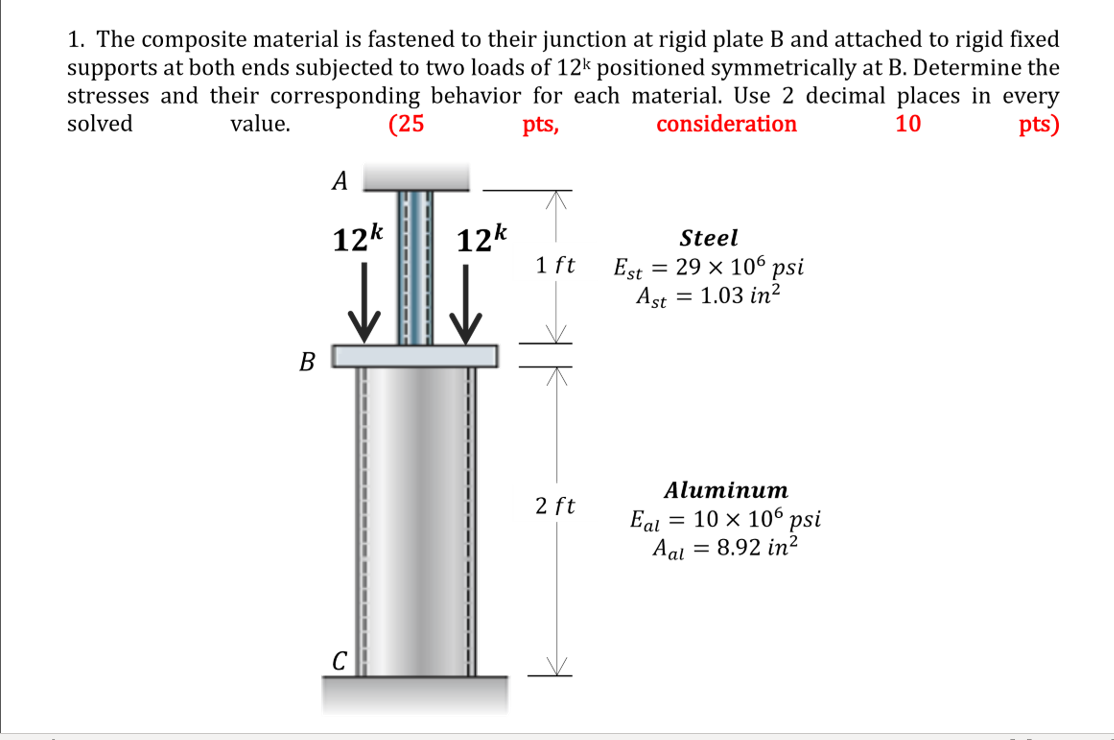

1 The Composite Material Is Fastened To Their Junction At Rigid Plate B And Attached To Rigid Fixed Supports At Both En 1
1 The Composite Material Is Fastened To Their Junction At Rigid Plate B And Attached To Rigid Fixed Supports At Both En 1 (118.97 KiB) Viewed 33 times
1. The composite material is fastened to their junction at rigid plate B and attached to rigid fixed supports at both ends subjected to two loads of 12k positioned symmetrically at B. Determine the stresses and their corresponding behavior for each material. Use 2 decimal places in every solved value. (25 pts, consideration 10 pts) A 12k 12k DOC 1 ft Steel Est = 29 x 106 psi Ast = 1.03 in2 B 2 ft Aluminum Eal = 10 x 106 psi Aal = 8.92 in2 С
