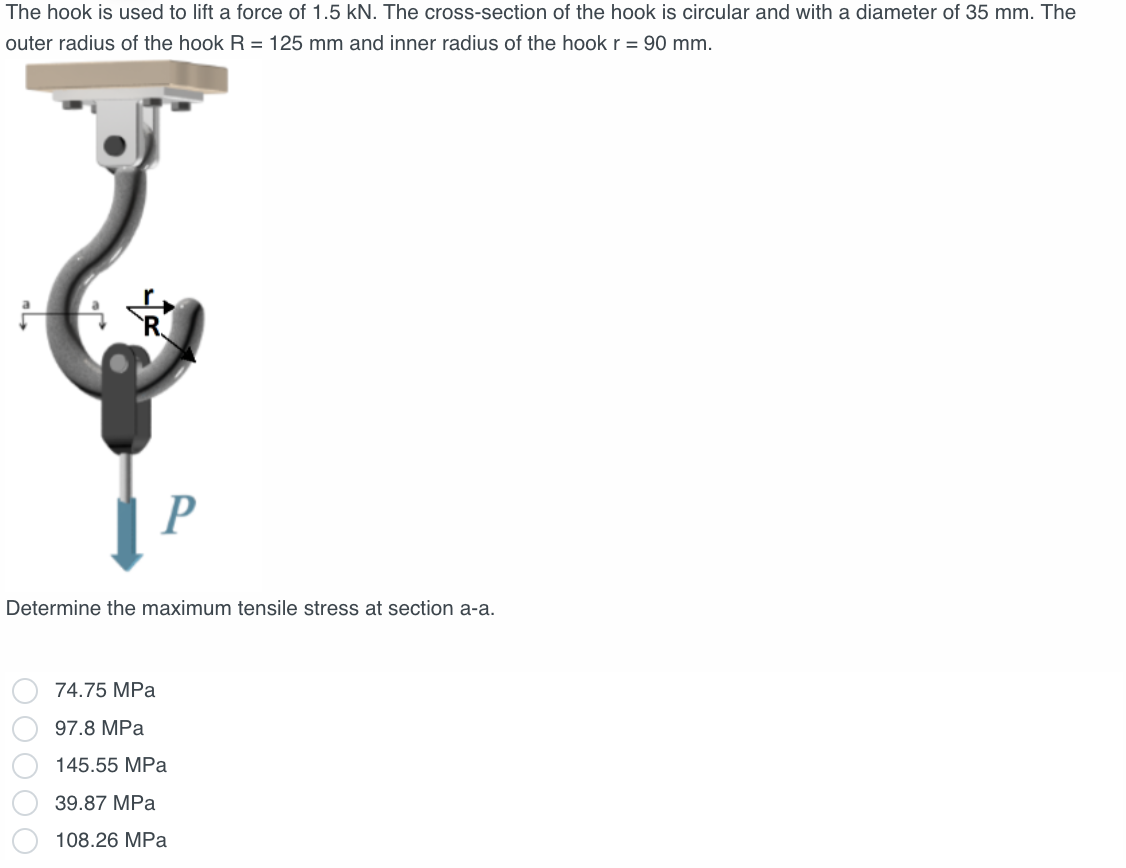

The Hook Is Used To Lift A Force Of 1 5 Kn The Cross Section Of The Hook Is Circular And With A Diameter Of 35 Mm The 1 (110.75 KiB) Viewed 20 times
The hook is used to lift a force of 1.5 kN. The cross-section of the hook is circular and with a diameter of 35 mm. The outer radius of the hook R = 125 mm and inner radius of the hook r = 90 mm. P. Determine the maximum tensile stress at section a-a. 74.75 MPa 97.8 MPa ООООО 145.55 MPa 39.87 MPa 108.26 MPa
The hook is used to lift a force of 1.5 kN. The cross-section of the hook is circular and with a diameter of 35 mm. The outer radius of the hook R = 125 mm and inner radius of the hook r = 90 mm. H P Determine the maximum compressive stress at section a-a. -18.49 MPa -36.75 MPa ООООО -64.1 MPa -46.9 MPa -27.47 MPa
