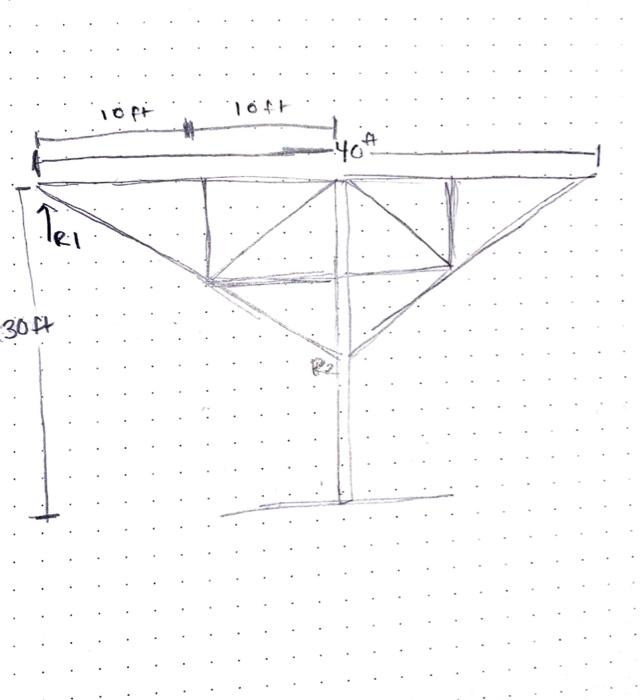

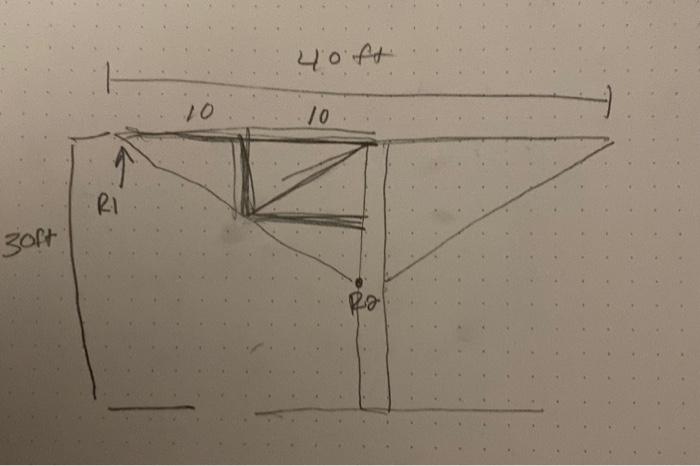

for joist and beM: take live load of 30 psf and dead load of as 10 psf. take Fb as 1000 psi and Fv as 100 psi for beams. E should be 1,200,000 psi. use chart for appropriate sections.
for truss members: take compressive stress of truss memebers at 1500 psi and tensile as 800 psi. take only maximum compressive and tensile values to determine dimensions of truss members.
